HIKVISION AcuSense 8MP 4mm 4K Strobe Light Audible Warning 30m IR Two-Way Audio Turret Network Camera DS-2CD2386G2H-IS2U/SL
Technology & key specs
Full specifications- 8MP8MP resolution4K Ultra HD detail, zoom in without blur
- AcuSense AIHuman/vehicle AI, fewer false alarms
- Active deterrenceStrobe light and audible warning
- 30m30m night visionSee clearly in total darkness
- WDR120dB WDRClear faces against bright backlight
- PoEPoE poweredOne network cable for power + video
- IP67IP67 weatherproofDust & water protected outdoors
- Two-way audioListen and talk through the camera
Secure payment
Overview

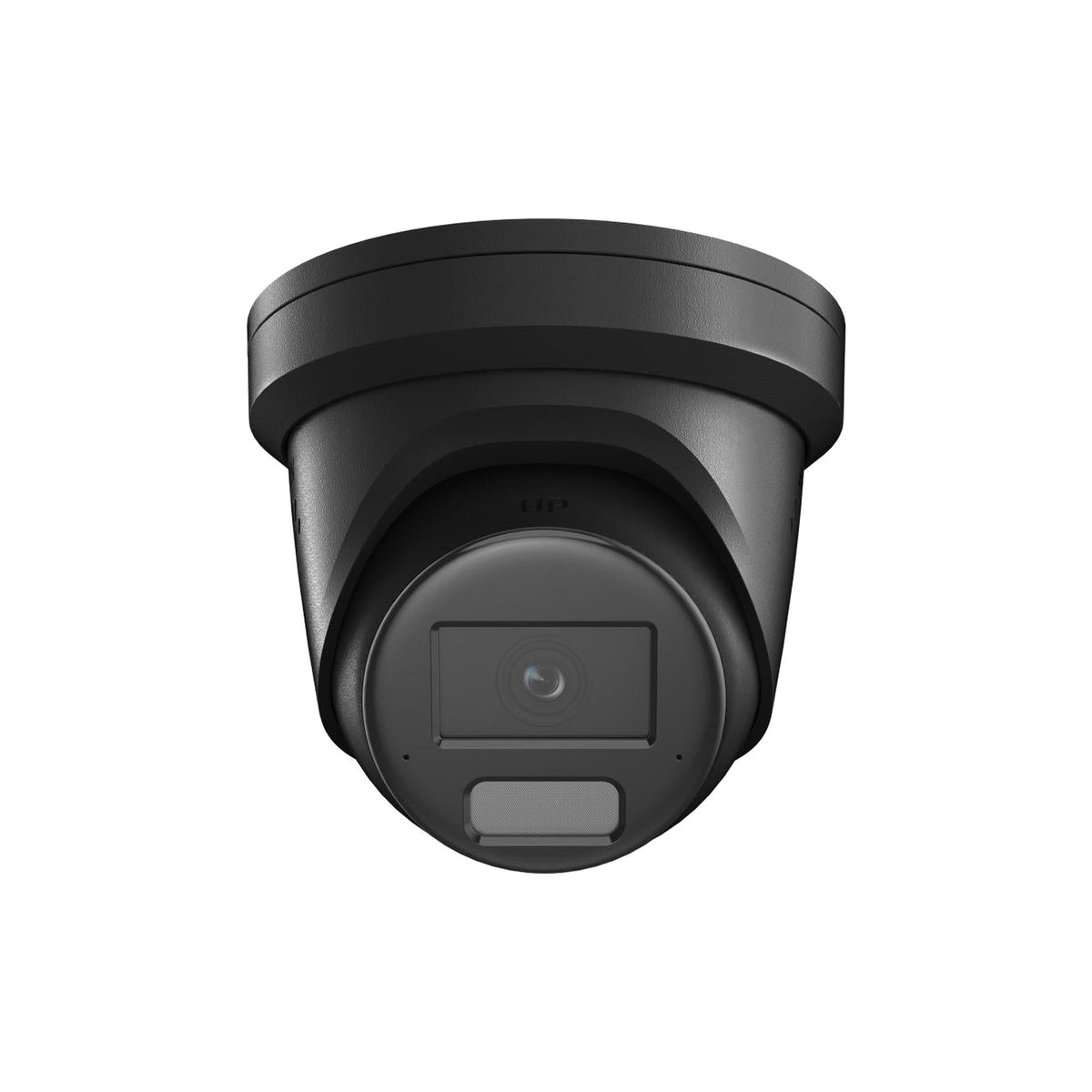

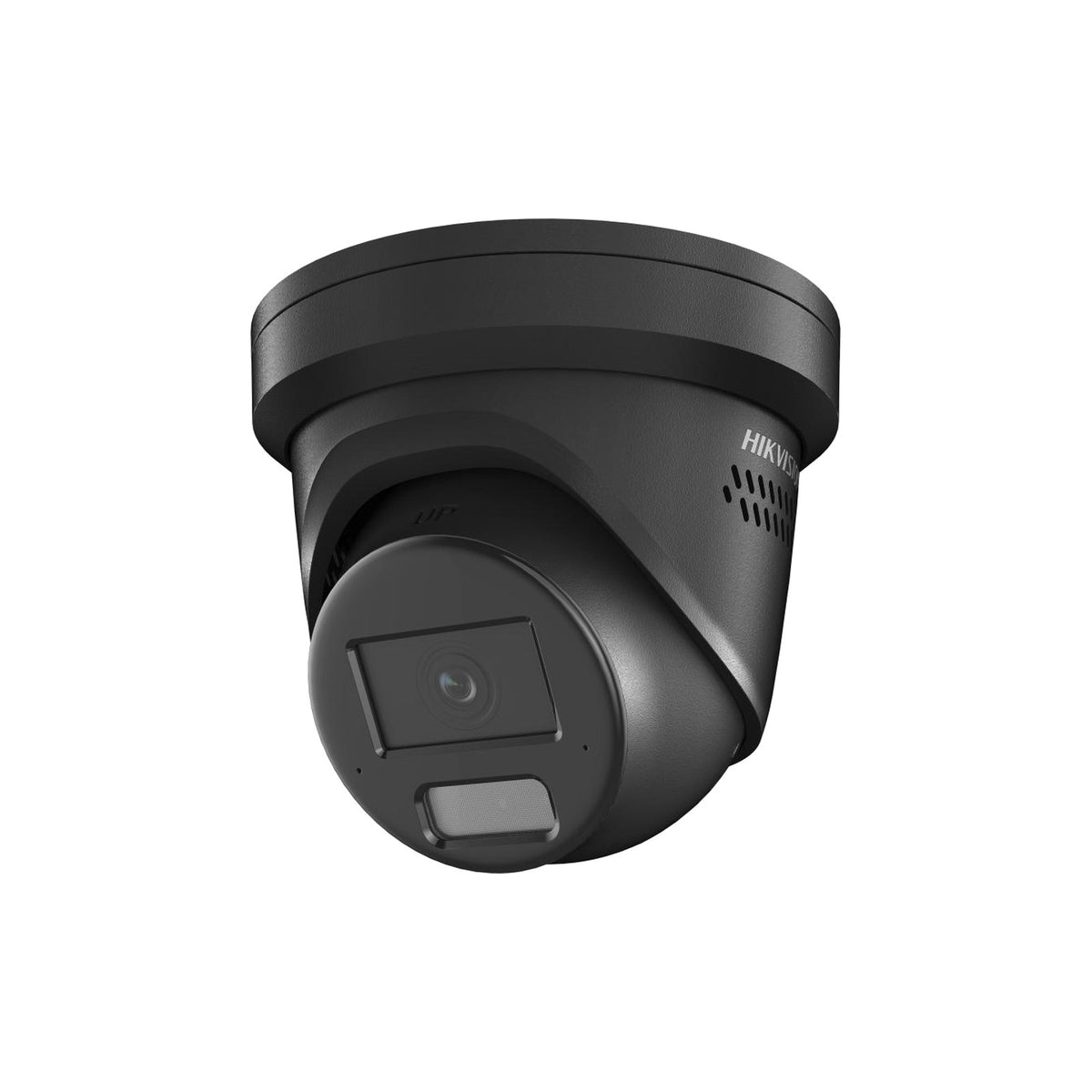

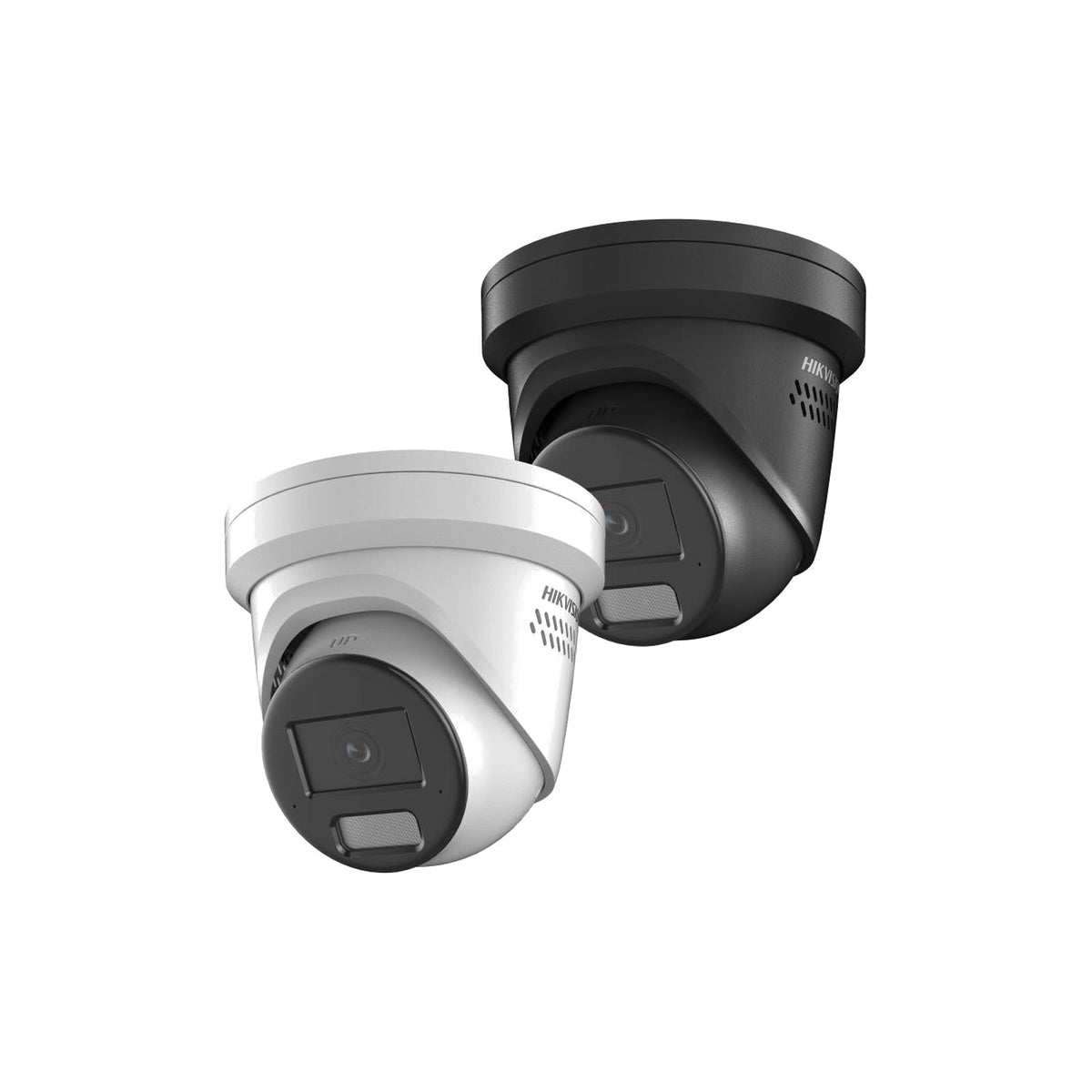

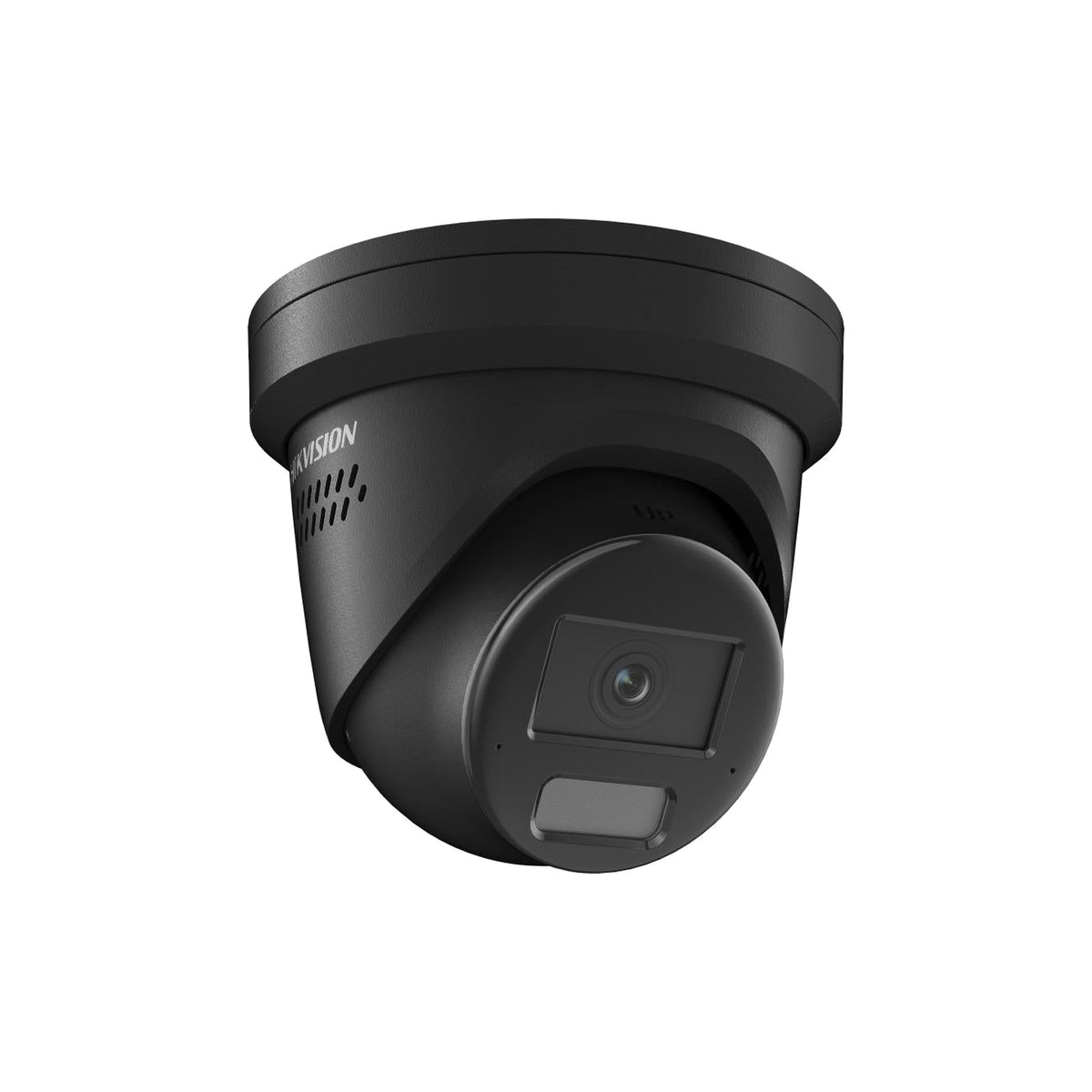

HIKVISION's DS-2CD2386G2H-IS2U/SL packs AcuSense into an 8MP (4K) turret IP camera. Imaging comes from a 1/1.8" progressive CMOS behind an F1.0 aperture, down to 0.0008 lux in colour. It is offered with a choice of fixed lens: 2.8 mm (105° horizontal) or 4 mm (90° horizontal). At night it uses IR up to 30 m.
Deep-learning perimeter rules (line crossing, intrusion, region entry/exit) classify people and vehicles, so leaves, rain and animals trigger far fewer false alarms. A built-in strobe and audible warning can be triggered by detection events to deter intruders before they act. Audio: built-in microphone and speaker for talk-back. It is IP67 rated, powered by PoE (802.3at), with on-board microSD backup.
Key features
- 8MP 4K (3840 × 2160) with H.265+
- AcuSense
- Fixed lens options: 2.8 mm / 4 mm (select below)
- WDR: 120 dB
- Illumination: IR up to 30 m
- Strobe and siren deterrence
- Two-way audio: on-board mic and speaker
- Alarm terminals: 1 in, 1 out
Key features & technical specifications
| Feature | Specification |
|---|---|
| Brand | HIKVISION |
| Model | DS-2CD2386G2H-IS2U/SL |
| Camera Type | 8MP AcuSense Strobe Light and Audible Warning Fixed Turret Network Camera |
| Image Sensor | 1/1.8" Progressive Scan CMOS |
| Max. Resolution | 3840 × 2160 |
| Min. Illumination | Color: 0.0008 Lux @ (F1.0, AGC ON),B/W: 0 Lux with IR |
| Lens | 4mm |
| Focal Length & FOV | 2.8 mm, horizontal FOV 105°, vertical FOV 56°, diagonal FOV 130°; 4 mm, horizontal FOV 90°, vertical FOV 47°, diagonal FOV 111° |
| Aperture | F1.0 |
| DORI (Detect/Observe/Recognise/Identify) | 2.8 mm: D: 89 m, O: 35 m, R: 17 m, I: 8 m; 4 mm: D: 109 m, O: 43 m, R: 21 m, I: 10 m |
| Supplement Light | IR |
| Supplement Light Range | Up to 30 m |
| Smart Supplement Light | Yes |
| Wide Dynamic Range | 120 dB |
| Video Compression | Main stream: H.265/H.264/H.264+/H.265+,; Sub-stream: H.265/H.264/MJPEG,; Third stream: H.265/H.264,; *Third stream is supported under certain settings. |
| Basic Events | Motion detection (support alarm triggering by specified target types (human and vehicle)),video tampering alarm,exception |
| AcuSense Perimeter Protection | Line crossing, intrusion, region entrance, region exiting; Support alarm triggering by specified target types (human and vehicle) |
| Smart Events | Scene change detection |
| Built-in Microphone | Yes, 2 built-in microphones |
| Built-in Speaker | Max. power consumption: 2 W, max. sound pressure level: 10 cm: 105 dB. |
| Alarm I/O | 1 input, 1 output (max. 24 VDC/24 VAC, 1 A) |
| Audio I/O | 1 input (line in), two-core terminal block, max. input amplitude: 3.3 Vpp, input impedance: 4.7 KΩ, interface type: non-equilibrium,; 1 output (line out), two-core terminal block, max. output amplitude: 3.3 Vpp, output impedance: 100 Ω, interface type: non-equilibrium |
| Event Linkage | Upload to FTP/NAS/memory card,notify surveillance center,send email,trigger alarm output,trigger recording,trigger capture,audible warning,strobe light |
| On-board Storage | Built-in memory card slot, support microSD/microSDHC/microSDXC card, up to 512 GB |
| Network Interface | 1 RJ45 10 M/100 M self-adaptive Ethernet port |
| Power | 12 VDC ± 25%, 1.34 A, max. 16 W,Ø5.5 mm coaxial power plug,reverse polarity protection,; PoE: IEEE 802.3at, Class 4, max. 18 W |
| Ingress / Impact Protection | IP67: IEC 60529-2013 |
| Material | Cover: metal, main body: metal |
| Face Capture | Yes |
| Dimensions | Ø138.3 mm × 115.4 mm (Ø5.4" × 4.5") |
| Weight | Approx. 780 g (1.71 lb.) |
| Operating Conditions | -30 °C to 60 °C (-22 °F to 140 °F). Humidity 95% or less (non-condensing) |
| Lens Options | 4mm |
| Australian Compliance | RCM (AS/NZS CISPR 32) listed by Hikvision |
Downloads
Recorder sold separately. Hard drives are not included with cameras or kits. Add a WD Purple or Seagate SkyHawk surveillance drive to your NVR.
Virtus Electronics supplies equipment only. For installation, configuration and testing we can refer you to licensed security installers in our partner network.
Ideal use cases
Buyer tips
Frequently asked questions
Can the DS-2CD2386G2H-IS2U/SL flash a strobe and sound a siren?
Yes. Its built-in strobe and audible alarm can fire on detection events, on a schedule you choose.
How far can it see at night?
Up to 30 m using IR. Real range depends on the scene and reflections.
Does it record audio?
Yes, it has a built-in microphone and a speaker for two-way audio.
What power does it need?
PoE 802.3at Class 4, up to 18 W or 12 VDC. A PoE NVR or switch powers it over the network cable.
Does it work with a Hikvision NVR?
Yes. Use a current Hikvision NVR for full smart-event support; it also supports ONVIF for third-party recorders.
