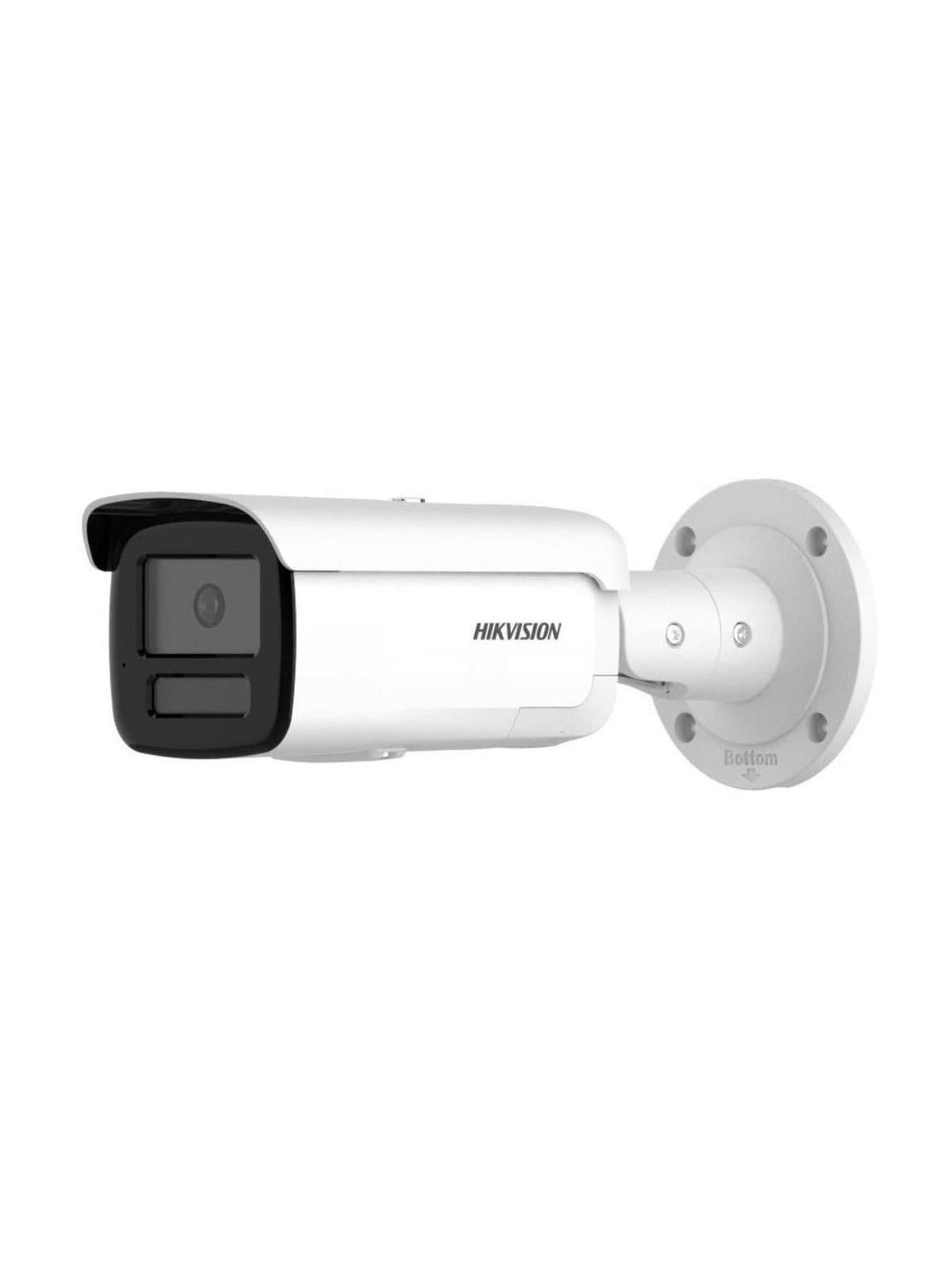

HIKVISION AcuSense 8MP 4K 6mm Strobe Light Audible Warning 60m IR Two-Way Audio Bullet Network Camera DS-2CD2T86G2-ISU/SL
Technology & key specs
Full specifications- 8MP8MP resolution4K Ultra HD detail, zoom in without blur
- AcuSense AIHuman/vehicle AI, fewer false alarms
- Active deterrenceStrobe light and audible warning
- 60m60m night visionIR (black & white)
- WDR120dB WDRClear faces against bright backlight
- PoEPoE poweredOne network cable for power + video
- IP67IP67 weatherproofDust & water protected outdoors
- Two-way audioListen and talk through the camera
Secure payment
Overview
HIKVISION's DS-2CD2T86G2-ISU/SL packs AcuSense into an 8MP (4K) bullet IP camera. Imaging comes from a 1/1.8" progressive CMOS behind an F1.6 aperture, down to 0.003 lux in colour. It ships with a 2.8 mm lens, 110° horizontal view. At night it uses IR up to 60 m.
Deep-learning perimeter rules (line crossing, intrusion, region entry/exit) classify people and vehicles, so leaves, rain and animals trigger far fewer false alarms. A built-in strobe and audible warning can be triggered by detection events to deter intruders before they act. Audio: built-in microphone and speaker for talk-back. It is IP67 rated, powered by PoE (802.3at), with on-board microSD backup.
Key features
- 8MP 4K (3840 × 2160) with H.265+
- AcuSense
- 2.8 mm lens, 110° horizontal view
- WDR: 120 dB
- Illumination: IR up to 60 m
- Strobe and siren deterrence
- Two-way audio: on-board mic and speaker
- Alarm terminals: Visual alarm
Key features & technical specifications
| Feature | Specification |
|---|---|
| Brand | HIKVISION |
| Model | DS-2CD2T86G2-ISU/SL |
| Camera Type | 4K AcuSense Strobe Light and Audible Warning Fixed Bullet Network Camera |
| Image Sensor | 1/1.8" Progressive Scan CMOS |
| Max. Resolution | 3840 × 2160 |
| Min. Illumination | Color: 0.003 Lux @ (F1.6, AGC ON), B/W: 0 Lux with IR |
| Lens | 6mm |
| Focal Length & FOV | 2.8 mm, horizontal FOV 110°, vertical FOV 58°, diagonal FOV 134°; 4 mm, horizontal FOV 88°, vertical FOV 50°, diagonal FOV 100°; 6 mm, horizontal FOV 59°, vertical FOV 34°, diagonal FOV 67° |
| Aperture | F1.6 |
| DORI (Detect/Observe/Recognise/Identify) | 2.8 mm: D: 89 m, O: 35 m, R: 17 m, I: 9 m; 4 mm: D: 99 m, O: 39 m, R: 20 m, I: 10 m; 6 mm: D: 140 m, O: 55 m, R: 28 m, I: 14 m |
| Supplement Light | IR |
| Supplement Light Range | Up to 60 m |
| Smart Supplement Light | Yes |
| Wide Dynamic Range | 120 dB |
| Video Compression | Main stream: H.265+/H.265/H.264+/H.264; Sub-stream: H.265/H.264/MJPEG; Third stream: H.265/H.264 |
| Basic Events | Motion detection (support alarm triggering by specified target types (human and vehicle)), video tampering alarm, exception |
| Smart Events | Line crossing detection, intrusion detection, region entrance detection, region exiting detection, scene change detection |
| Built-in Microphone | Yes |
| Built-in Speaker | Power: 2 W. Max. sound pressure level: 10 cm: 97 dB. |
| Alarm I/O | Visual alarm; 1 input, 1 output (max. 24 VDC/24 VAC, 1 A) |
| Audio I/O | 1 input (line in), terminal block, max. input amplitude: 3.3 Vpp, input impedance: 2.2KΩ, interface type: non-equilibrium; 1 output (line out), terminal block, max. output amplitude: 3.3 Vpp, output impedance: 100 Ω, interface type: non-equilibrium |
| Event Linkage | Upload to NAS/memory card/FTP, notify surveillance center, send email, trigger recording, trigger capture, trigger alarm output, audible warning, white light flashing |
| On-board Storage | Built-in memory card slot, support microSD/microSDHC/microSDXC card, up to 512 GB |
| Network Interface | 1 RJ45 10 M/100 M self-adaptive Ethernet port |
| Power | 12 VDC ± 25%, 1.17 A, max. 14 W, Ø5.5 mm coaxial power plug, reverse polarity protection; PoE: 802.3at, Class 4, 42.5 V to 57 V, 0.4 A to 0.3 A, max. 17 W |
| Ingress / Impact Protection | IP67: IEC 60529-2013 |
| Dimensions | 286.7 mm × 93.3 mm × 91.2 mm (11.3" × 3.7" × 3.6") |
| Operating Conditions | -30 °C to 60 °C (-22 °F to 140 °F). Humidity 95% or less (non-condensing) |
| Australian Compliance | RCM (AS/NZS CISPR 32) listed by Hikvision |
Downloads
Recorder sold separately. Hard drives are not included with cameras or kits. Add a WD Purple or Seagate SkyHawk surveillance drive to your NVR.
Virtus Electronics supplies equipment only. For installation, configuration and testing we can refer you to licensed security installers in our partner network.
Ideal use cases
Buyer tips
Frequently asked questions
Can the DS-2CD2T86G2-ISU/SL flash a strobe and sound a siren?
Yes. Its built-in strobe and audible alarm can fire on detection events, on a schedule you choose.
How far can it see at night?
Up to 60 m using IR. Real range depends on the scene and reflections.
Does it record audio?
Yes, it has a built-in microphone and a speaker for two-way audio.
What power does it need?
PoE 802.3at Class 4, up to 17 W or 12 VDC. A PoE NVR or switch powers it over the network cable.
Does it work with a Hikvision NVR?
Yes. Use a current Hikvision NVR for full smart-event support; it also supports ONVIF for third-party recorders.
