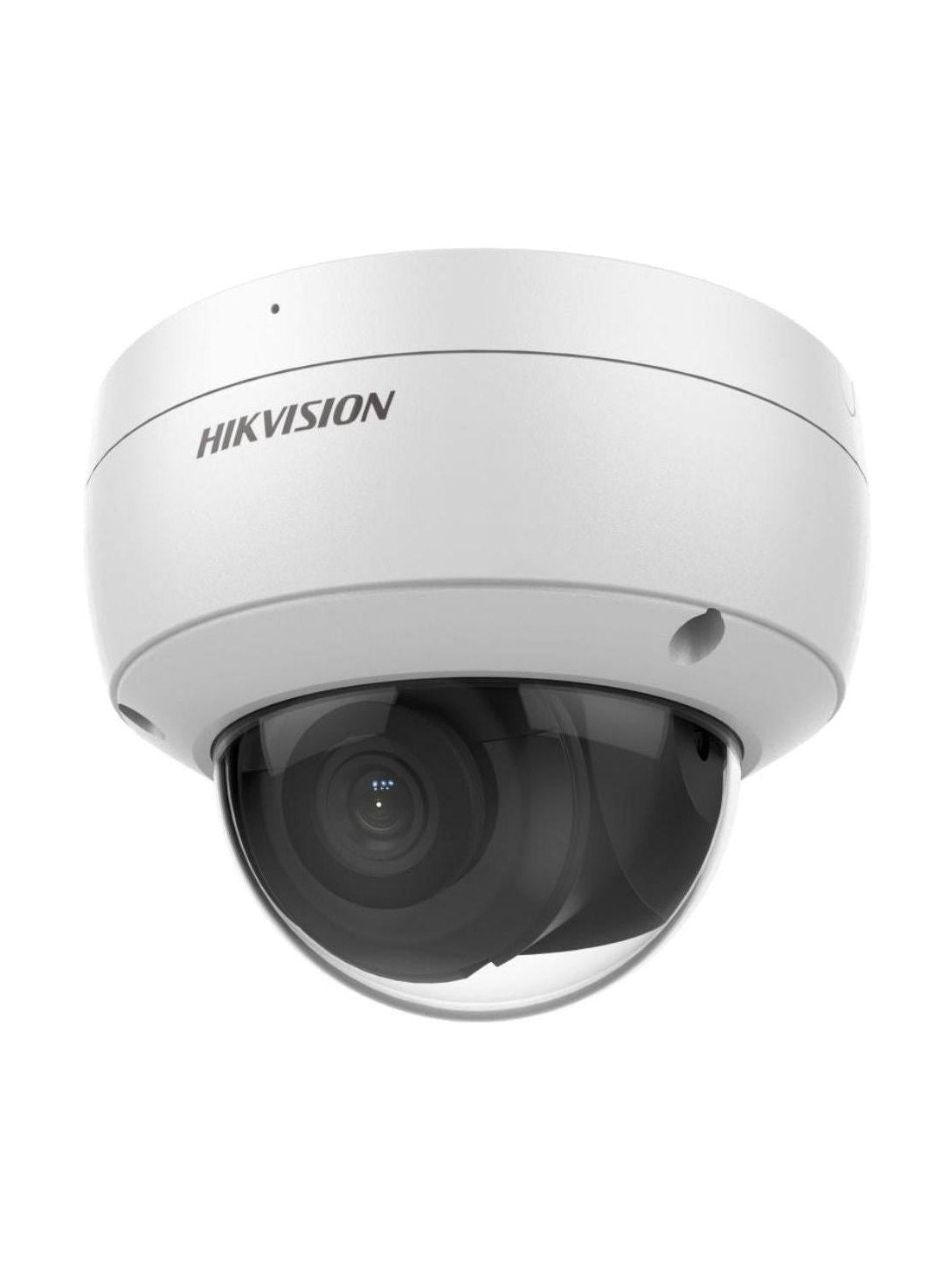

HIKVISION AcuSense 6MP 4mm 30m IR Built-in Mic IK10 White Dome Network Camera DS-2CD2166G2-ISU

HIKVISION

HIKVISION AcuSense 6MP 4mm 30m IR Built-in Mic IK10 White Dome Network Camera DS-2CD2166G2-ISU

SKU: DS-2CD2166G2-ISU-3

$297.00

Tax included.
Shipping calculated at checkout.
In stock

Technology & key specs

Full specifications
  • 6MP6MP resolution3K detail, about 3x sharper than 1080p
  • AcuSense AIHuman/vehicle AI, fewer false alarms
  • 30m30m night visionIR (black & white)
  • WDR120dB WDRClear faces against bright backlight
  • PoEPoE poweredOne network cable for power + video
  • IP67IP67 weatherproofDust & water protected outdoors
  • IK10IK10 vandal-proofImpact-resistant housing
  • Built-in microphoneRecords audio with the video
Project or bulk order? Request a quote · Trade / B2B account

Dispatched within 1 business day once payment is confirmed

Free shipping on orders over $999 within Australia

14-day change-of-mind returns on unused items. Faulty goods covered under the ACL. Returns policy

Questions? Call 0423 105 993 or contact us

Australian warranty and tech support

Official online reseller with real support from brands

Secure payment

  • American Express
  • Apple Pay
  • Google Pay
  • Mastercard
  • Shop Pay
  • Union Pay
  • Visa
HIKVISION AcuSense 6MP 4mm 30m IR Built-in Mic IK10 White Dome Network Camera DS-2CD2166G2-ISU

$297.00

$297.00

Overview

HIKVISION's DS-2CD2166G2-ISU packs AcuSense into a 6MP dome IP camera. Imaging comes from a 1/2.4" progressive CMOS behind an F1.6 aperture, down to 0.003 lux in colour. It is offered with a choice of fixed lens: 2.8 mm (105° horizontal) or 4 mm (78° horizontal). At night it uses IR up to 30 m.

Deep-learning perimeter rules (line crossing, intrusion, region entry/exit) classify people and vehicles, so leaves, rain and animals trigger far fewer false alarms. Audio: built-in microphone (no speaker). It is IP67 IK10 rated, powered by PoE (802.3af), with on-board microSD backup.

Key features

  • 6MP (3200 × 1800) with H.265+
  • AcuSense
  • Fixed lens options: 2.8 mm / 4 mm (select below)
  • WDR: 120 dB
  • Illumination: IR up to 30 m
  • On-board microphone
  • Alarm terminals: 1 in, 1 out (TTL: max. 12 VDC, 30 mA)
  • microSD slot up to 512 GB

Key features & technical specifications

Feature Specification
Brand HIKVISION
Model DS-2CD2166G2-ISU
Camera Type 6 MP AcuSense Fixed Dome Network Camera
Image Sensor 1/2.4" Progressive Scan CMOS
Max. Resolution 3200 × 1800
Min. Illumination Color: 0.003 Lux @ (F1.6, AGC ON),B/W: 0 Lux with IR
Lens 4mm
Focal Length & FOV 2.8 mm, horizontal FOV 105°, vertical FOV 55°, diagonal FOV 127°; 4 mm, horizontal FOV 78°, vertical FOV 38°, diagonal FOV 96°
Aperture F1.6
DORI (Detect/Observe/Recognise/Identify) 2.8 mm: D: 76 m, O: 30 m, R: 15 m, I: 7 m; 4 mm: D: 115 m, O: 45 m, R: 23 m, I: 11 m
Supplement Light IR
Supplement Light Range Up to 30 m
Smart Supplement Light Yes
Wide Dynamic Range 120 dB
Video Compression Main stream: H.265+/H.265/H.264+/H.264,; Sub-stream: H.265/H.264/MJPEG,; Third stream: H.265/H.264 (*Third stream is supported under certain settings.)
Basic Events Motion detection (support alarm triggering by specified target types (human and vehicle)),video tampering alarm,exception, alarm input and output (-S)
Smart Events Line crossing detection, intrusion detection, region entrance detection, region exiting detection (support alarm triggered by specified target types (human and vehicle)),Scene change detection
Built-in Microphone Yes
Alarm I/O 1 input, 1 output (TTL: max. 12 VDC, 30 mA)
Audio I/O 1 input (line in), max. input amplitude: 3.3 vpp, input impedance:4.7 KΩ, interface type: non-equilibrium; 1 output (line out), max. output amplitude: 3.3 vpp, output impedance: 100 Ω, interface type: non-equilibrium, mono sound
Event Linkage Upload to FTP/NAS/memory card,notify surveillance center,send email,trigger recording,trigger capture,trigger alarm output (-S), audible warning (-S)
On-board Storage Built-in memory card slot, support microSD/microSDHC/microSDXC card, up to 512 GB
Network Interface 1 RJ45 10 M/100 M self-adaptive Ethernet port
Power 12 VDC ± 25%, 0.5 A, max. 6 W, Ø5.5 mm coaxial power plug, reverse polarity protection,; PoE: IEEE 802.3af, Class 3, max. 7.5 W
Ingress / Impact Protection IP67: IEC 60529-2013,IK10: IEC 62262:2002
Material Aluminum alloy body, bubble: plastic
Face Capture Yes
Dimensions Ø121.4 mm × 92.2 mm (Ø4.8" × 3.6")
Weight Approx. 440 g (1.0 lb.)
Operating Conditions -30 °C to 60 °C (-22 °F to 140 °F). Humidity 95% or less (non-condensing)
Housing Colour White
Lens Options 4mm
Australian Compliance RCM (AS/NZS CISPR 32) listed by Hikvision

Downloads

Recorder sold separately. Hard drives are not included with cameras or kits. Add a WD Purple or Seagate SkyHawk surveillance drive to your NVR.

Virtus Electronics supplies equipment only. For installation, configuration and testing we can refer you to licensed security installers in our partner network.

Ideal use cases

Driveways and front entries: 6MP detail for visitors, parcels and vehicles.

Side passages and backyards: Perimeter rules alert on people, not pets or moving foliage.

Shopfronts and small businesses: Clear identification at counters, doors and loading areas.

High-risk or reachable mounts: IK10 housing resists tampering and impact.

Sites needing audio capture: Built-in mic captures sound where recording audio is lawful.

Buyer tips

  1. Pick the right lens. 2.8 mm gives the widest view for yards and rooms; 4 mm narrows the view for more detail on gates, doors and driveways further away.
  2. Mount height. 2.5–3.5 m gives good identification while keeping the camera out of easy reach.
  3. Audio law. Enable the microphone only where audio recording is lawful in your state.
  4. Check NVR compatibility. Smart search and AcuSense filtering need a compatible Hikvision NVR and current firmware.
  5. Budget storage. Higher resolution needs more HDD space; size the NVR drive for your retention period.

Frequently asked questions

Is there a strobe or siren on the DS-2CD2166G2-ISU?

No. For active deterrence choose a LiveGuard /SL model.

How far can it see at night?

Up to 30 m using IR. Real range depends on the scene and reflections.

Does it record audio?

Yes, it has a built-in microphone.

What power does it need?

PoE 802.3af Class 3, up to 7.5 W or 12 VDC. A PoE NVR or switch powers it over the network cable.

Does it work with a Hikvision NVR?

Yes. Use a current Hikvision NVR for full smart-event support; it also supports ONVIF for third-party recorders.
