HIKVISION AcuSense 6MP 4mm 30m IR Built-in Mic Fixed Turret Network Camera DS-2CD2366G2-IU-4MM

SKU: DS-2CD2366G2-IU-4MM

$257.00

Tax included.
Shipping calculated at checkout.
In stock

Technology & key specs

Full specifications
  • 6MP6MP resolution3K detail, about 3x sharper than 1080p
  • AcuSense AIHuman/vehicle AI, fewer false alarms
  • Active deterrenceStrobe light and audible warning
  • 30m30m night visionIR (black & white)
  • WDR120dB WDRClear faces against bright backlight
  • PoEPoE poweredOne network cable for power + video
  • IP67IP67 weatherproofDust & water protected outdoors
  • Built-in microphoneRecords audio with the video
Project or bulk order? Request a quote · Trade / B2B account

Dispatched within 1 business day once payment is confirmed

Free shipping on orders over $999 within Australia

14-day change-of-mind returns on unused items. Faulty goods covered under the ACL. Returns policy

Questions? Call 0423 105 993 or contact us

Australian warranty and tech support

Official online reseller with real support from brands

Secure payment

  • American Express
  • Apple Pay
  • Google Pay
  • Mastercard
  • Shop Pay
  • Union Pay
  • Visa
HIKVISION AcuSense 6MP 4mm 30m IR Built-in Mic Fixed Turret Network Camera DS-2CD2366G2-IU-4MM

$257.00

$257.00

Overview

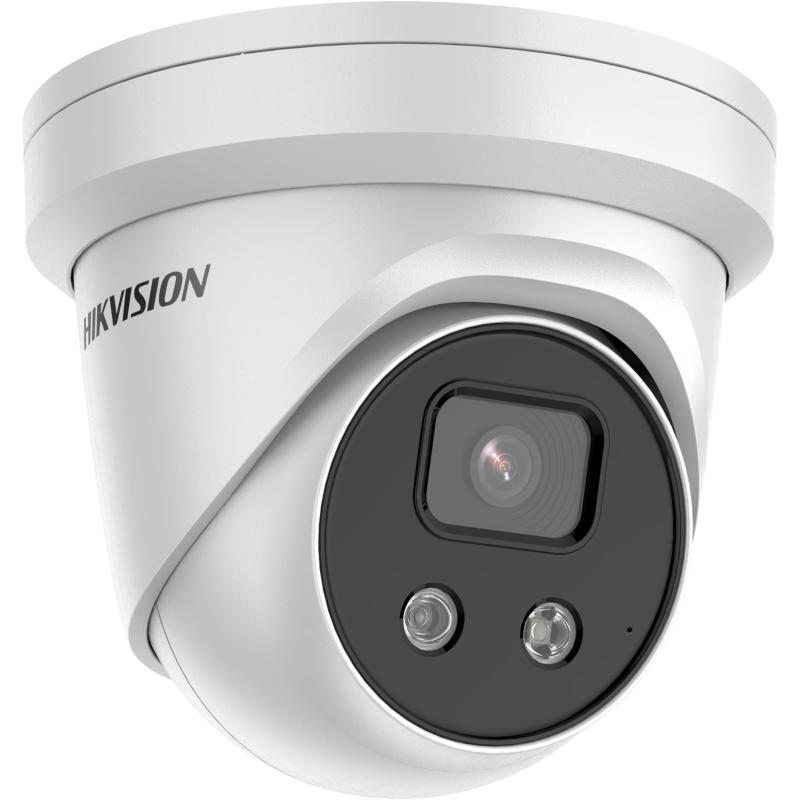

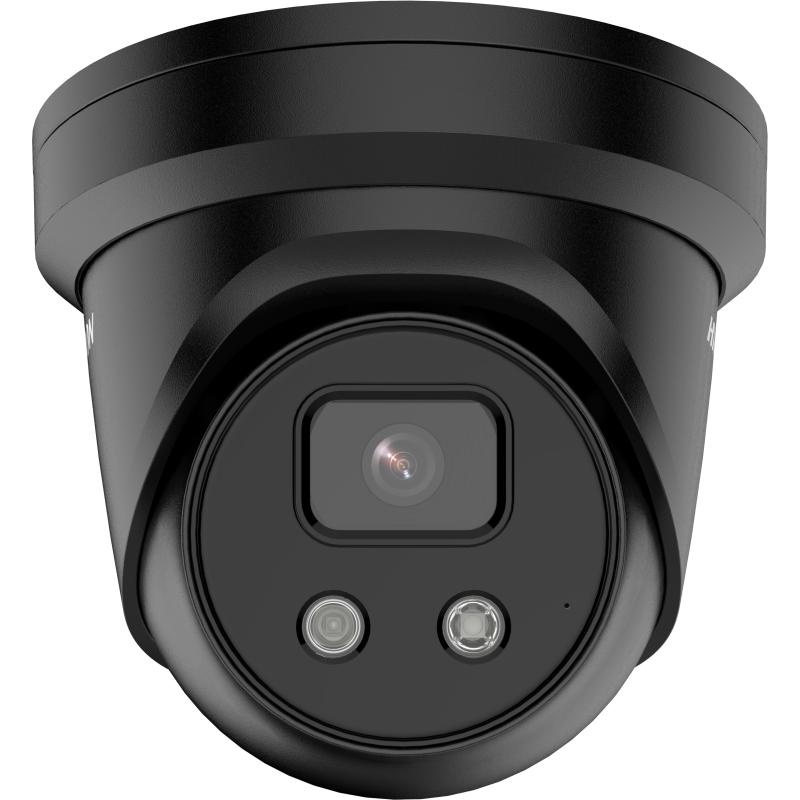

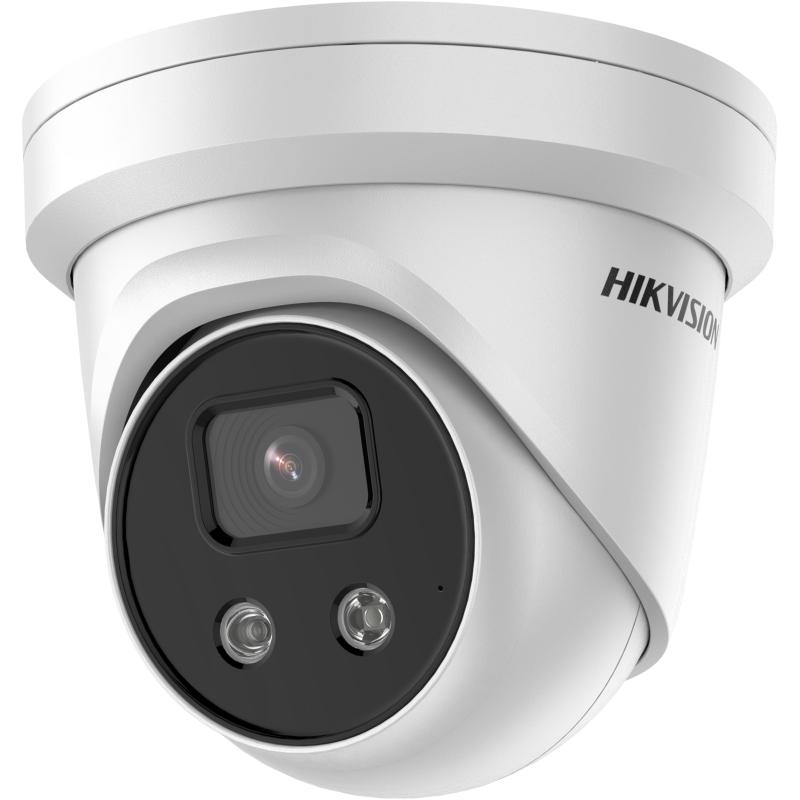

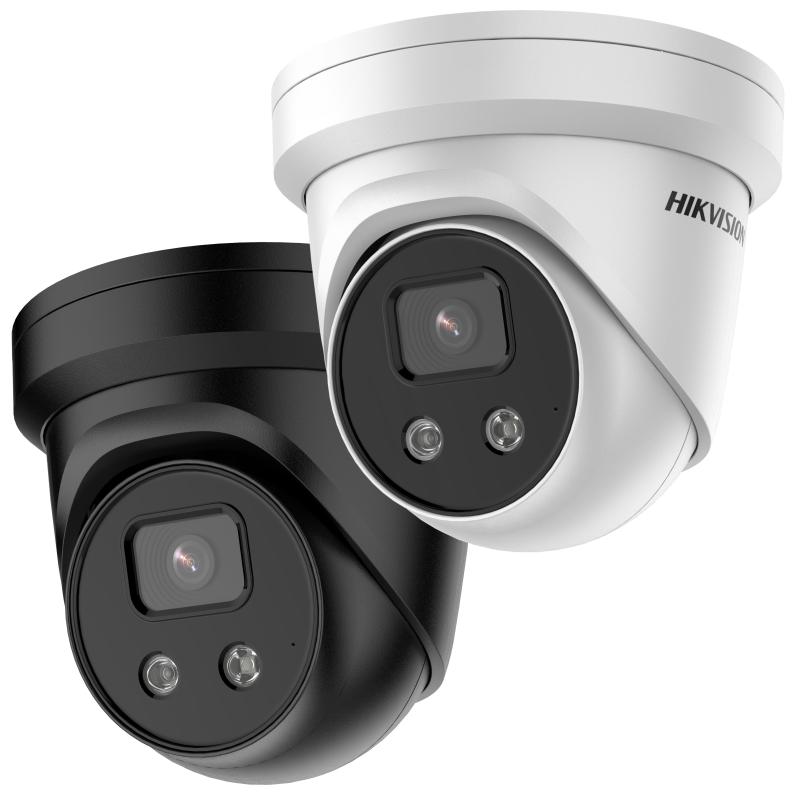

The HIKVISION DS-2CD2366G2-IU-4MM is a 6MP AcuSense fixed turret network camera from the Hikvision Pro Series (EasyIP). It records at up to 3200 × 1800 from a 1/2.4" progressive scan CMOS sensor, with smart IR up to 30 m and 120 dB WDR for entries where bright sky and shaded porches sit in the same frame.

AcuSense deep learning classifies people and vehicles, so motion, line crossing and intrusion rules can be set to alert on real targets instead of moving foliage, rain or headlights. The -IU suffix adds a built-in microphone; this model has no speaker, strobe light or siren. The metal IP67 housing and 3-axis bracket suit eave, soffit and wall mounting, and the camera runs from 802.3af PoE (max. 6.5 W) or 12 VDC.

Key features

  • AcuSense human and vehicle classification on motion detection and perimeter rules (line crossing, intrusion, region entrance/exiting)
  • 6MP (3200 × 1800) at 25/30 fps with H.265+ to cut storage and bandwidth
  • Smart IR up to 30 m, 850 nm, with smart supplement light to limit over-exposure up close
  • 120 dB true WDR plus BLC, HLC and 3D DNR for mixed-light entries
  • Built-in microphone with environmental noise filtering (audio capture only, no speaker)
  • microSD slot up to 512 GB and ANR for edge recording if the network drops
  • IP67 metal housing, 802.3af PoE Class 3 or 12 VDC

Key features & technical specifications

Feature Specification
Brand HIKVISION
Model DS-2CD2366G2-IU-4MM
Camera Type 6 MP AcuSense Fixed Turret Network Camera
Image Sensor 1/2.4" Progressive Scan CMOS
Max. Resolution 3200 × 1800
Min. Illumination Color: 0.003 Lux @ (F1.6, AGC ON),B/W: 0 Lux with IR
Lens 4mm
Focal Length & FOV 2.8 mm, horizontal FOV 105°, vertical FOV 55°, diagonal FOV 127°; 4 mm, horizontal FOV 78°, vertical FOV 38°, diagonal FOV 96°; 6 mm, horizontal FOV 51°, vertical FOV 26°, diagonal FOV 59°
Aperture F1.6
DORI (Detect/Observe/Recognise/Identify) 2.8 mm: D: 76 m, O: 30 m, R: 15 m, I: 7 m; 4 mm: D: 115 m, O: 45 m, R: 23 m, I: 11 m; 6 mm: D: 164 m, O: 65 m, R: 32 m, I: 16 m
Supplement Light IR
Supplement Light Range Up to 30 m
Smart Supplement Light Yes
Wide Dynamic Range 120 dB
Video Compression Main stream: H.265+/H.265/H.264+/H.264,; Sub-stream: H.265/H.264/MJPEG,; Third stream: H.265/H.264 (*Third stream is supported under certain settings.)
Basic Events Motion detection (support alarm triggering by specified target types (human and vehicle)),video tampering alarm,exception
Smart Events Line crossing detection, intrusion detection, region entrance detection, region exiting detection (support alarm triggered by specified target types (human and vehicle)), scene change detection
Built-in Microphone Yes
Event Linkage Upload to FTP/NAS/memory card,notify surveillance center,send email,trigger recording,trigger capture
On-board Storage Built-in memory card slot, support microSD/microSDHC/microSDXC card, up to 512 GB
Network Interface 1 RJ45 10 M/100 M self-adaptive Ethernet port
Power 12 VDC ± 25%, 0.45 A, max. 5.4 W,Ø5.5 mm coaxial power plug,reverse polarity protection,; PoE: IEEE 802.3af, Class 3, max. 6.5 W
Ingress / Impact Protection IP67: IEC 60529-2013
Material Metal except for trim ring
Dimensions Ø138.3 mm × 111.4 mm (Ø5.4" × 4.4")
Weight Approx. 740 g (1.6 lb.)
Operating Conditions -30 °C to 60 °C (-22 °F to 140 °F). Humidity 95% or less (non-condensing)
Australian Compliance RCM (AS/NZS CISPR 32) listed by Hikvision

Downloads

Recorder sold separately. Hard drives are not included with cameras or kits — add a WD Purple or Seagate SkyHawk surveillance drive to your NVR.

Ideal use cases

Residential driveways and front entries: The 2.8 mm lens covers a wide 105° horizontal view of a typical suburban driveway and porch, and AcuSense filters alerts to people and cars rather than passing shadows.

Eave and soffit mounting on brick, weatherboard or rendered homes: The compact metal turret is IP67 rated and adjusts on three axes, so it can be aimed down a side path or across a front yard from under the gutter line.

Shopfronts and small offices with mixed light: 120 dB WDR helps keep faces readable at glass doors where bright footpaths meet darker interiors.

Side gates and rear lanes: Line crossing or intrusion rules filtered to human targets give useful after-hours alerts on gates, bin areas and laneways without constant false triggers.

Strata common areas that need quiet monitoring: With no siren or strobe, it suits lobbies, car-park entries and mailbox areas where audible deterrence is not wanted.

Small NVR systems and kits: It pairs with Hikvision AcuSense NVRs for target-filtered search, and with 802.3af PoE switches or recorders on a single Cat6 run.

Buyer tips

  1. Pick the right lens before ordering. This listing offers 2.8 mm (wide, about 105°) and 4 mm (about 78°). Use 2.8 mm for driveways and porches, and 4 mm when you need more detail further down a path.
  2. Don't confuse -IU with LiveGuard models. DS-2CD2366G2-IU records sound but has no strobe, siren or speaker. Choose the -ISU/SL version if the site needs active deterrence.
  3. Check the NVR supports AcuSense events. Target-filtered alarms and smart search work best on a Hikvision AcuSense-capable NVR running current firmware.
  4. Allow for IR range at the far end of the yard. IR is rated to 30 m. Beyond that, add a light source or a second camera rather than relying on IR alone.
  5. Budget the PoE. At max. 6.5 W it is a light load, but add up all cameras against your switch or NVR PoE budget before installing.

Frequently asked questions

Does the HIKVISION DS-2CD2366G2-IU have a strobe light, siren or speaker?

No. The -IU model has a built-in microphone only. If you need flashing light, siren or two-way talk, choose a LiveGuard -ISU/SL sibling instead.

What does AcuSense do on this camera?

It uses deep learning to classify people and vehicles. Motion and perimeter rules can then trigger only on those target types, which greatly reduces false alerts.

How far does the night vision reach?

Hikvision rates the smart IR at up to 30 m. At night the image switches to black and white.

Can it run on PoE?

Yes. It supports IEEE 802.3af PoE (Class 3, max. 6.5 W) or 12 VDC, so one Cat6 cable from a PoE NVR or switch powers it.

Is audio recording legal in Australia?

Audio surveillance laws vary by state and territory. Enable the microphone only where recording conversations is permitted, and use signage.
