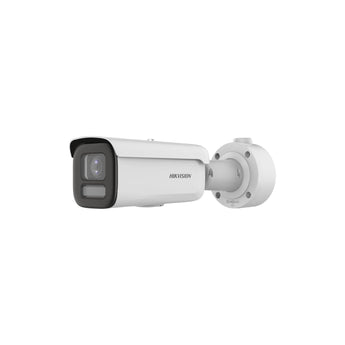

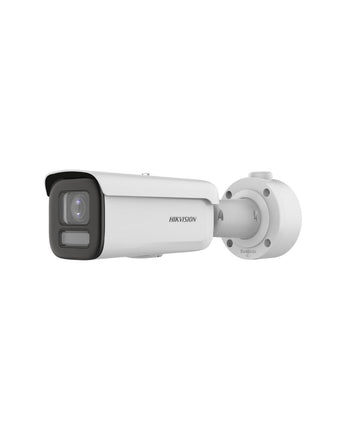

HIKVISION DS-2CD3666G2HT-LIZSY Bullet camera
HIKVISION DS-2CD3666G2HT-LIZSY Bullet camera
HIKVISION DS-2CD3666G2HT-LIZSY Bullet camera
HIKVISION
HIKVISION AcuSense 6MP 2.7-13.5mm Motorised Varifocal 60m Hybrid Light IK10 Bullet Network Camera DS-2CD3666G2HT-LIZSY
This price is GST-exclusive
Couldn't load pickup availability
Know more about this product
Overview
HIKVISION's DS-2CD3666G2HT-LIZSY packs AcuSense and Smart Hybrid Light into a 6MP bullet IP camera. Imaging comes from a 1/1.8" progressive CMOS behind an F1.2 aperture, down to 0.0028 lux in colour. It ships with a 2.7–13.5 mm lens, 112.3° to 41.2° horizontal view. At night it uses Smart Hybrid Light (IR and white LEDs) reaching 60 m.
Deep-learning perimeter rules (line crossing, intrusion, region entry/exit) classify people and vehicles, so leaves, rain and animals trigger far fewer false alarms. Smart hybrid light runs in low-key IR by default and brightens to white light once a human or vehicle target is confirmed. It is IP67 IK10 rated, powered by PoE (802.3at), with on-board microSD backup.
Key Features
- 6MP (3200 × 1800) with H.265+
- AcuSense, Smart Hybrid Light
- 2.7–13.5 mm lens, 112.3° to 41.2° horizontal view
- WDR: 120 dB
- Illumination: Smart Hybrid Light (IR and white LEDs) reaching 60 m
- Alarm terminals: 2 in, 2 out
- microSD slot up to 512 GB
- IP67 IK10, 802.3at
Key Features & Technical Specifications
| Feature | Specification |
|---|---|
| Brand | HIKVISION |
| Model | DS-2CD3666G2HT-LIZSY |
| Camera Type | Bullet Network Camera |
| Image Sensor | 1/1.8" Progressive Scan CMOS |
| Max. Resolution | 3200 × 1800 |
| Min. Illumination | Color: 0.0028 Lux @ (F1.2, AGC ON),0 Lux with light |
| Lens | Varifocal lens, motorized lens, 2.7 to 13.5 mm |
| Focal Length & FOV | 2.7 to 13.5 mm, horizontal FOV 112.3° to 41.2°, vertical FOV 58.1° to 23.1°, diagonal FOV 137.4° to 47.3° |
| Aperture | F1.2 |
| DORI (Detect/Observe/Recognise/Identify) | Wide: D: 89 m, O: 35 m, R: 18 m, I: 9 m; Tele: D: 220 m, O: 87 m, R: 44 m, I: 22 m |
| Supplement Light | IR,White Light (Smart Hybrid Light) |
| Supplement Light Range | Up to 60 m |
| Smart Supplement Light | Yes |
| Wide Dynamic Range | 120 dB |
| Video Compression | Main stream: H.265/H.264/H.264+/H.265+,; Sub-stream: H.265/H.264/MJPEG,; Third stream: H.265/H.264,; Fourth stream: H.265/H.264/MJPEG,; *Third stream and fourth stream are supported under certain settings. |
| Basic Events | Motion detection (support alarm triggering by specified target types (human and vehicle)),video tampering alarm,exception |
| AcuSense Perimeter Protection | Line crossing, intrusion, region entrance, region exiting; Support alarm triggering by specified target types (human and vehicle) |
| Smart Events | Scene change detection, audio exception detection, defocus detection |
| Built-in Microphone | No |
| Alarm I/O | 2 inputs, 2 outputs (max. 24 VDC/24 VAC, 1 A) |
| Audio I/O | 1 input (line in), two-core terminal block, max. input amplitude: 3.3 Vpp, input impedance: 4.7 KΩ, interface type: non-equilibrium,; 1 output (line out), two-core terminal block, max. output amplitude: 3.3 Vpp, output impedance: 100 Ω, interface type: non-equilibrium |
| Event Linkage | Upload to FTP/NAS/memory card,notify surveillance center,send email,trigger recording,trigger capture,trigger alarm output,audible warning |
| On-board Storage | Built-in memory card slot, support microSD/microSDHC/microSDXC card, up to 512 GB |
| Network Interface | 1 RJ45 10 M/100 M self-adaptive Ethernet port |
| Power | 12 VDC ± 25%, 1.21 A, max. 14.5 W,Ø5.5 mm coaxial power plug,reverse polarity protection,; PoE: IEEE 802.3at, Class 4, max. 18 W |
| Ingress / Impact Protection | IP67: IEC 60529-2013,IK10: IEC 62262:2002 |
| Material | Front cover: Metal, body: Metal, bracket: Metal |
| Face Capture | Yes |
| Anti-Corrosion | NEMA 4X (NEMA 250-2018) |
| Dimensions | 334 mm × 97.9 mm × 95.7 mm (13.2" × 3.9" × 3.8") |
| Weight | Approx. 1515 g (3.3 lb.) |
| Operating Conditions | -30 °C to 60 °C (-22 °F to 140 °F). Humidity 95% or less (non-condensing) |
Downloads
Recorder sold separately. Hard drives are not included with cameras or kits. Add a WD Purple or Seagate SkyHawk surveillance drive to your NVR.
Virtus Electronics supplies equipment only. For installation, configuration and testing we can refer you to licensed security installers in our partner network.
