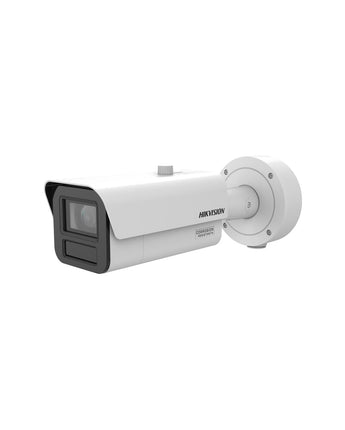

HIKVISION DS-2CD3A46G2T-IZHS Bullet camera
HIKVISION DS-2CD3A46G2T-IZHS Bullet camera
HIKVISION DS-2CD3A46G2T-IZHS Bullet camera
HIKVISION
HIKVISION AcuSense 4MP 6-60mm Motorised Varifocal 120m IR IK10 Bullet Network Camera DS-2CD3A46G2T-IZHS
This price is GST-exclusive
Couldn't load pickup availability
Know more about this product
Overview
HIKVISION's DS-2CD3A46G2T-IZHS packs AcuSense into a 4MP bullet IP camera. Imaging comes from a 1/1.8" progressive CMOS behind an F1.4 aperture, down to 0.002 lux in colour. It ships with a 6–60 mm lens, 59.5° to 7.3° horizontal view. At night it uses IR up to 120 m.
Deep-learning perimeter rules (line crossing, intrusion, region entry/exit) classify people and vehicles, so leaves, rain and animals trigger far fewer false alarms. It is IP67 IK10 rated, powered by PoE (802.3at), with on-board microSD backup.
Key Features
- 4MP (2688 × 1520) with H.265+
- AcuSense
- 6–60 mm lens, 59.5° to 7.3° horizontal view
- WDR: 120 dB
- Illumination: IR up to 120 m
- Alarm terminals: 3 in, 3 out
- microSD slot up to 1 TB
- IP67 IK10, 802.3at
Key Features & Technical Specifications
| Feature | Specification |
|---|---|
| Brand | HIKVISION |
| Model | DS-2CD3A46G2T-IZHS |
| Camera Type | 4MP AcuSense Moto Varifocal Bullet Camera |
| Image Sensor | 1/1.8" Progressive Scan CMOS |
| Max. Resolution | 2688 × 1520 |
| Min. Illumination | Color: 0.002 Lux @ (F1.4, AGC ON),0 Lux with IR |
| Lens | Varifocal lens, motorized lens, 6 to 60 mm |
| Focal Length & FOV | 6 to 60 mm, horizontal FOV 59.5° to 7.3°, vertical FOV 35.9° to 4.2°, diagonal FOV 66.5° to 8.3° |
| Aperture | F1.4 |
| DORI (Detect/Observe/Recognise/Identify) | Wide: D: 93.8 m, O: 37.2 m, R: 18.8 m , I: 9.4 m; Tele: D: 827.6 m , O: 328.4 m, R: 165.5 m, I: 82.8 m |
| Supplement Light | IR |
| Supplement Light Range | Up to 120 m |
| Smart Supplement Light | Yes |
| Wide Dynamic Range | 120 dB |
| Video Compression | Main stream: H.265+/H.265/H.264+/H.264; Sub-stream: H.265/H.264/MJPEG; Third stream: H.265/H.264; Fourth stream: H.265/H.264/MJPEG; *Third stream and fourth stream are supported under Monitoring Mode. |
| Basic Events | Motion detection (support alarm triggering by specified target types (human and vehicle)),video tampering alarm,exception |
| AcuSense Perimeter Protection | Line crossing, intrusion, region entrance, region exiting; Support alarm triggering by specified target types (human and vehicle) |
| Smart Events | Scene change detection, audio exception detection |
| Built-in Microphone | No |
| Alarm I/O | 3 inputs, 3 outputs (max. 24 VDC, 1 A) |
| Audio I/O | 1 input (line in), two-core terminal block, max. input amplitude: 3.3 Vpp, input impedance: 4.7 KΩ, interface type: non-equilibrium,; 1 output (line out), two-core terminal block, max. output amplitude: 3.3 Vpp, output impedance: 100 Ω, interface type: non-equilibrium |
| Event Linkage | Upload to FTP/NAS/memory card,notify surveillance center,send email,trigger recording,trigger capture,audible warning,trigger alarm output |
| On-board Storage | Built-in memory card slot, support microSD/microSDHC/microSDXC card, up to 1 TB |
| Network Interface | 1 RJ45 10 M/100 M self-adaptive Ethernet port |
| Power | 12 VDC ± 15%, 1.21 A, max. 14.5 W, 24 VAC ± 20%, 1.01 A, max. 14.5 W, two-core terminal block,; PoE: IEEE 802.3at, Class 4, max. 18 W |
| Ingress / Impact Protection | IP67: IEC 60529:1989+AMD1:1999+AMD2:2013,; IK10: IEC 62262:2002+AMD1:2021 |
| Material | Front cover: metal, body: metal, bracket: metal |
| Face Capture | Yes |
| Dimensions | 144 mm × 140 mm × 349.2 mm (5.7" × 5.5" × 13.7") |
| Operating Conditions | -40 °C to 60 °C (-22 °F to 140 °F). Humidity 95% or less (non-condensing) |
Downloads
Recorder sold separately. Hard drives are not included with cameras or kits. Add a WD Purple or Seagate SkyHawk surveillance drive to your NVR.
Virtus Electronics supplies equipment only. For installation, configuration and testing we can refer you to licensed security installers in our partner network.
