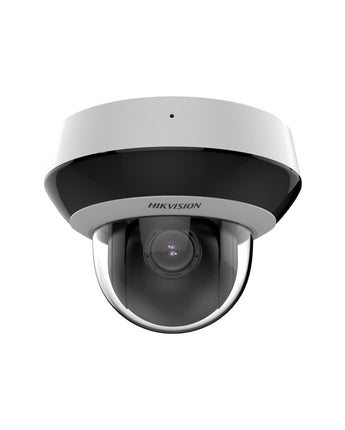

HIKVISION DS-2DE2A404IWG1-E PTZ camera
HIKVISION
HIKVISION AcuSense 4MP 4x Optical Zoom 20m IR Two-Way Audio IK10 PTZ Network Camera DS-2DE2A404IWG1-E
This price is GST-exclusive
Couldn't load pickup availability
Know more about this product
Overview
HIKVISION's DS-2DE2A404IWG1-E packs AcuSense into a 4MP PTZ IP camera. Imaging comes from a 1/2.8" progressive CMOS behind an F1.8 aperture, down to 0.005 lux in colour. Optical zoom: 4x optical. At night it uses IR up to 20 m.
Deep-learning perimeter rules (line crossing, intrusion, region entry/exit) classify people and vehicles, so leaves, rain and animals trigger far fewer false alarms. Audio: built-in microphone and speaker for talk-back. It is IP66 IK10 rated, powered by PoE (802.3af).
Key Features
- 4MP (2560 × 1440) with H.265+
- AcuSense
- Optical zoom: 4x optical
- WDR: 120 dB
- Illumination: IR up to 20 m
- Two-way audio: on-board mic and speaker
- IP66 IK10, 802.3af
Key Features & Technical Specifications
| Feature | Specification |
|---|---|
| Brand | HIKVISION |
| Model | DS-2DE2A404IWG1-E |
| Camera Type | 4MP 4X IR Mini Outdoor Acusense PTZ Camera |
| Image Sensor | 1/2.8" Progressive Scan CMOS |
| Max. Resolution | 2560 × 1440 |
| Min. Illumination | Color: 0.005 Lux @ (F1.8, AGC ON),B/W: 0.001 Lux @ (F1.8, AGC ON),0 Lux with IR |
| Aperture | Max. F1.8 |
| Supplement Light | IR |
| Supplement Light Range | IR Distance: up to 20 m |
| Smart Supplement Light | Yes |
| Wide Dynamic Range | 120 dB |
| Video Compression | Main stream: H.265+/H.265/H.264+/H.264; Sub-stream: H.265/H.264/MJPEG; Third stream: H.265/H.264/MJPEG |
| Basic Events | Motion detection, video tampering alarm, exception |
| Smart Events | Line crossing detection,intrusion detection,region exiting detection,region entrance detection |
| Built-in Microphone | 1 built-in microphone, picking up sounds in the radius up to 5 meters |
| Built-in Speaker | 1 built-in speaker, with effective distance reaching max. 10 meters |
| Audio I/O | 1 input (line in), max. input amplitude: 2-2.4 vpp, input impedance: 1 KΩ ± 10%; 1 output (line out), line level, output impedance: 600 Ω |
| Event Linkage | Upload to FTP/NAS/memory card,notify surveillance center,send email,trigger recording,audible warning |
| Network Interface | 1 RJ45 10M/100M self-adaptive Ethernet port |
| Power | 12 VDC, Max. 9.2 W; PoE (802.3af) |
| Ingress / Impact Protection | IP66 (IEC 60529-2013), IK10, TVS 4000V lightning protection, surge protection and voltage transient protection |
| Focal Length | 2.8 to 12 mm |
| Field of View | Horizontal field of view: 99.4° to 32.8°, vertical field of view: 51.7° to 18.4°, diagonal field of view: 119.9° to 37.5° |
| Zoom | 4x optical, 16x digital |
| Pan Range | 0° to 355° |
| Tilt Range | 0° to 90° |
| Presets | 300 |
| On-board Storage | Built-in memory card slot, support microSD/microSDHC/microSDXC card, up to 512 GB |
| Operating Conditions | -20 °C to 60 °C (-4 °F to 140 °F). Humidity 90% or less (non-condensing) |
| Dimensions | Ø130.7 mm × 103.6 mm (Ø5.15" × 4.00") |
Downloads
Recorder sold separately. Hard drives are not included with cameras or kits. Add a WD Purple or Seagate SkyHawk surveillance drive to your NVR.
Virtus Electronics supplies equipment only. For installation, configuration and testing we can refer you to licensed security installers in our partner network.
