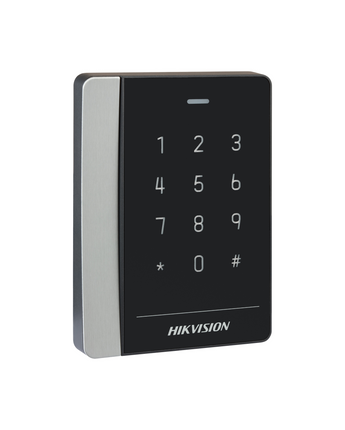

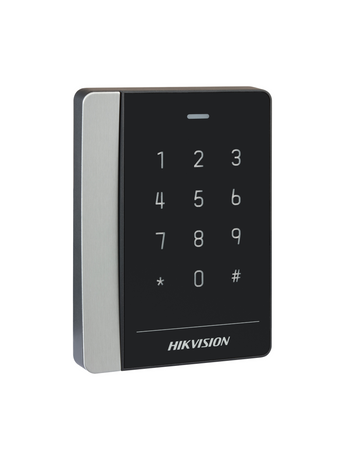

HIKVISION Access Control Keypad Reader Mifare 1 Card RS485 Wiegand IP64 A-DS-K1102MK

Name: HIKVISION Access Control Keypad Reader Mifare 1 Card RS485 Wiegand IP64 A-DS-K1102MK
Brand: HIKVISION
SKU: A-DS-K1102MK
Price: 147.00 AUD
Availability: InStock

$147.00 AUD

This price is GST-exclusive

Product variants

Quantity

Payment

Know more about this product

Secure entry management is achieved with this standalone access control keypad reader. The unit supports Mifare 1 card technology alongside RS485 and Wiegand (W26/W34) protocols for versatile system integration. An IP64 dust-proof and tamper-proof alarm rating ensures reliable operation in demanding environments. The sleek design incorporates a numeric keypad for PIN entry and card reading capabilities.

Model	A-DS-K1102MK
Card Type	Mifare 1
Communication Protocol	RS485, Wiegand (W26/W34)
Ingress Protection	IP64
Input Interface	12-key Numeric Keypad
Alarm Function	Tamper-proof Alarm
Durability	Dust-proof
Application	Access Control
Mounting	Surface Mount
Series	Access Control Terminal

How to use this product - from Virtus experts

These guides are created by our experts with years of real-world security surveillance experience. Get a free project quote tailored to your needs — contact our team at Virtus Electronics today.

Office and Staff Entrances: Mifare card reading combined with a numeric keypad makes the reader suitable for controlled staff entrances where card and PIN-based authentication may be configured through the access control system.

Retail and Commercial Properties: the compact reader can be used at doors, staff-only areas and other controlled access points connected to a compatible Hikvision access controller.

Apartment and Shared Building Access: Mifare 1 credential support makes the DS-K1102MK practical for properties where authorised users are issued contactless access cards.

Protected Outdoor Entry Points: the IP64-rated housing provides protection against dust and water splashes, making the reader suitable for appropriately installed sheltered outdoor entrances as well as indoor locations.

The DS-K1102MK supports Mifare 1 cards at 13.56 MHz. Check existing card technology before purchase, as it should not be assumed to work with every proximity-card format.
The 12-key keypad adds PIN-entry capability alongside card reading, making this version more flexible than the keypad-free DS-K1102M. Hikvision's current 1102-series documentation identifies keypad variants with keys 0–9, * and #.
Communication is available through RS-485 or Wiegand W26/W34, so confirm that the access controller supports the intended interface before installation.
The reader includes a built-in audible beeper and tamper alarm, providing local feedback and additional protection against unauthorised removal or interference.
The IP64 rating does not mean fully waterproof. For exposed external locations, installation position and weather protection should still be considered.
This product should be treated as an access control reader connected to a compatible controller, rather than a standalone device that directly manages a door lock by itself. Hikvision categorises the DS-K1102 as a Pro Series reader and specifies RS-485/Wiegand controller communication.

What type of cards does the DS-K1102MK support? The DS-K1102MK supports Mifare 1 cards operating at 13.56 MHz.

Does the DS-K1102MK have a keypad? Yes. The MK version includes a numeric keypad, allowing PIN entry in addition to contactless card reading when supported by the configured access control system.

Does it support both RS-485 and Wiegand? Yes. Hikvision specifies RS-485 and Wiegand W26/W34 interfaces, providing flexibility when connecting the reader to compatible access controllers.

Can the DS-K1102MK be installed outdoors? The reader carries an IP64 ingress-protection rating, providing protection against dust and splashing water. For locations directly exposed to heavy rain or harsh weather, additional shelter should be considered.

Can the DS-K1102MK open a door by itself? It is designed primarily as an access control reader, communicating credential and keypad data to a compatible access controller via RS-485 or Wiegand. The controller normally handles the access decision and lock operation.
