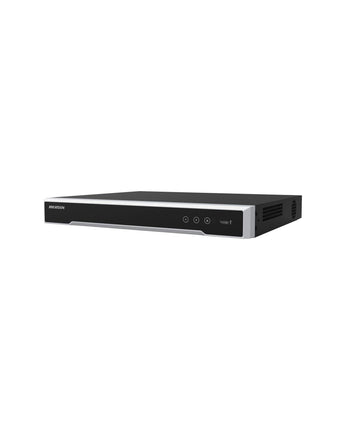

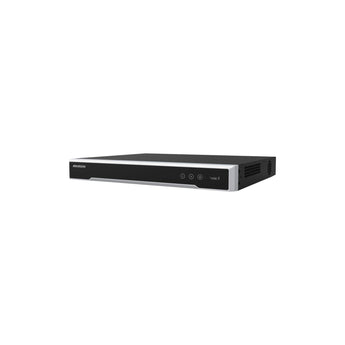

HIKVISION DS-7616NI-I2/16P network video recorder
HIKVISION
HIKVISION 16-Channel 12MP 16-Port PoE 2-SATA Network Video Recorder DS-7616NI-I2/16P
This price is GST-exclusive
Couldn't load pickup availability
Know more about this product
Overview
HIKVISION's DS-7616NI-I2/16P records up to 16 IP cameras at resolutions to 12MP. It accepts 160 Mbps of incoming camera bandwidth and stores footage on 2 SATA bays (max 16 TB each).
16 built-in PoE ports each feed power and video to a camera over one cable, sharing a 200 W PoE budget. Its HDMI output reaches 4K for local monitors. Live view and playback run on HDMI/VGA, iVMS-4200 and the Hik-Connect app. Hard drives are not included.
Key Features
- 16 IP channels, up to 12MP recording
- Incoming bandwidth: 160 Mbps
- Storage: 2 SATA bays, max 16 TB each (HDD sold separately)
- 16 PoE ports, 200 W budget (802.3af/at)
- Decoding: 2-ch@12 MP (20 fps)/4-ch@8 MP (25 fps)
- HDMI output up to 4K
- Network: 1 × Gigabit RJ-45
Key Features & Technical Specifications
| Feature | Specification |
|---|---|
| Brand | HIKVISION |
| Model | DS-7616NI-I2/16P |
| Product Type | 16-ch 1U 16 PoE 4K NVR |
| IP Video Input | 16-ch; Up to 12 MP resolution |
| Incoming Bandwidth | 160 Mbps |
| Outgoing Bandwidth | 256 Mbps |
| Recording Resolution | 12 MP/8 MP/6 MP/5 MP/4 MP/3 MP/1080p/UXGA/720p/VGA /4CIF/DCIF/ 2CIF/CIF/QCIF |
| Decoding Format | H.265+/H.265/H.264+/H.264/MPEG4 |
| Decoding Capability | 2-ch@12 MP (20 fps)/4-ch@8 MP (25 fps)/8-ch@4 MP (30 fps)/16-ch@1080p (30 fps) |
| Synchronous Playback | 16-ch |
| HDMI Output | 4K (3840 × 2160)/60Hz, 4K (3840 × 2160)/30Hz, 1920 × 1080/60Hz |
| VGA Output | 1920 × 1080/60Hz |
| Audio Output | 1-ch, RCA (Linear, 1 KΩ) |
| SATA | 2 SATA interfaces |
| HDD Capacity | Up to 16 TB capacity for each disk |
| Network Protocols | TCP/IP, DHCP, IPv4, IPv6, DNS, DDNS, NTP, RTSP, SADP, SMTP, SNMP, NFS, iSCSI, ISUP, UPnP™, HTTP, HTTPS, ONVIF(Version 2.2), OTAP |
| Network Interface | 1, RJ-45 10/100/1000 Mbps self-adaptive Ethernet interface |
| PoE Interface | 16, RJ-45 10/100 Mbps self-adaptive Ethernet interface |
| PoE Power Budget | ≤ 200W |
| PoE Standard | IEEE 802.3af/at |
| USB | Front panel: 1 × USB 2.0; Rear panel: 1 × USB 3.0 |
| Alarm I/O | 4/1 |
| Power Supply | 100 to 240 VAC, 50 to 60 Hz |
| Power Consumption | ≤15 W (without enabling PoE) |
| Operating Temperature | -10 °C to 55 °C (14 °F to 131 °F) |
| Operating Humidity | 10 to 90 % |
| Dimensions | 385 × 315× 52 mm (15.2" × 12.4" × 2.0") |
| Hard Drive | Not included: HDDs are sold separately |
Downloads
Hard drives are not included. HDDs are sold separately: add a WD Purple or Seagate SkyHawk surveillance drive sized for your retention period.
Virtus Electronics supplies equipment only. For installation, configuration and testing we can refer you to licensed security installers in our partner network.
