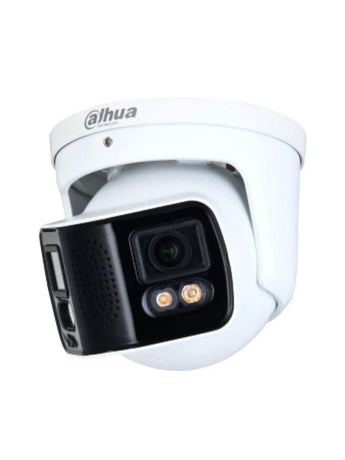

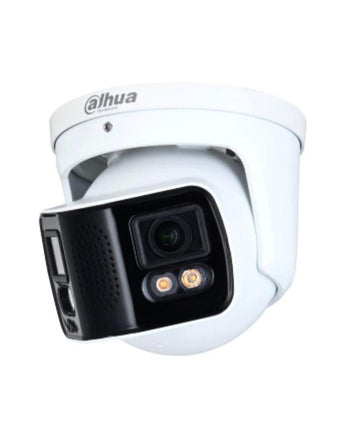

DAHUA DH-IPC-PDW5849 8 MP Full-Colour Duo Splicing WizMind Turret Camera
DAHUA DH-IPC-PDW5849 8 MP Full-Colour Duo Splicing WizMind Turret Camera – view 2
DAHUA DH-IPC-PDW5849 8 MP Full-Colour Duo Splicing WizMind Turret Camera – view 3
DAHUA
DAHUA IPC-PDW5849-A180-E2-ASTE 2×4MP WizMind 3.6mm built-in mic IP67 Eyeball Network Camera
This price is GST-exclusive
Couldn't load pickup availability
Know more about this product
Overview
DAHUA IPC-PDW5849-A180-E2-ASTE is specified at 2×4MP as a WizMind Full-colour eyeball IP camera. Imaging uses a Dual 1/1.8" CMOS. The lens is 3.6 mm, fixed. Illumination: 40 m (131.23 ft).
Perimeter rules on this model cover intrusion, tripwire, loitering, and Dahua states the rules sort people and vehicles. Audio: a microphone is built in. A speaker is not listed. Also rated for WDR 140 dB, IP67, PoE or 12 VDC, microSD up to 512 GB. Operating range: –40 °C to +60 °C (–40 °F to +140 °F).
Key Features
- 2×4MP max resolution (4096 (H) × 1800 (V))
- WizMind, Full-colour
- Fixed 3.6 mm
- WDR 140 dB
- Yes
- microSD slot, up to 512 GB
- IP67 PoE
Key Features & Technical Specifications
| Feature | Specification |
|---|---|
| Brand | DAHUA |
| Model | IPC-PDW5849-A180-E2-ASTE |
| Camera Type | 2×4MP Full-color Duo Splicing WizMind Network Camera |
| Image Sensor | Dual 1/1.8" CMOS |
| Max. Resolution | 4096 (H) × 1800 (V) |
| Min. Illumination | 0.0005 lux@F1.0 (Color, 30 IRE) 0.0002 lux@F1.0 (B/W, 30 IRE) 0 lux (Illuminator on) |
| Lens Type | Fixed-focal |
| Focal Length | 3.6 mm |
| Max. Aperture | F1.0 |
| Field of View | H: 180°±10° V: 48° |
| Illumination Distance | 40 m (131.23 ft) |
| Illuminators | 4 (Warm light) |
| Wide Dynamic Range | 140 dB |
| Perimeter Protection | Intrusion, tripwire, fast moving (the three functions support the classification and accurate detection of vehicle and human); loitering detection, people gathering, and parking detection |
| Built-in Microphone | Yes |
| Video Compression | H.265; H.264; H.264H; H.264B; MJPEG (Only supported by the sub stream) |
| On-board Storage | FTP; SFTP; Micro SD card (support max. 512 GB); NAS |
| Network Port | RJ-45 (10/100 Base-T) |
| Power | 12 VDC (±30%)/PoE+ (802.3at)/ePoE |
| Ingress / Impact Protection | IP67 |
| Operating Temperature | –40 °C to +60 °C (–40 °F to +140 °F) |
| Dimensions | Φ122 mm × 131.9 mm (Φ4.80" × 5.19" ) |
| Net Weight | 990 g (2.18 lb) |
Downloads
Recorder sold separately. Hard drives are not included with cameras. Add a WD Purple or Seagate SkyHawk surveillance drive to your NVR.
Virtus Electronics supplies the equipment only. Installation, configuration and testing are not done by Virtus. We can refer the project to a licensed security installer in our partner network. Every referred partner holds a security licence.
