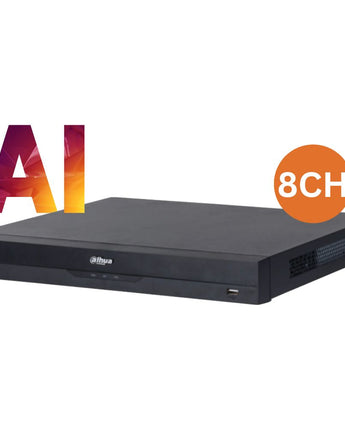

DAHUA DHI-NVR4208-8P-AI/ANZ 8-Channel 16MP WizSense AI Network Video Recorder
DAHUA DHI-NVR4208-8P-AI/ANZ 8-Channel 16MP WizSense AI Network Video Recorder – view 2
DAHUA
DAHUA NVR4208-8P-AI/ANZ 8-channel WizSense 8-port PoE 2 HDD bays Network Video Recorder
This price is GST-exclusive
Couldn't load pickup availability
Know more about this product
Overview
DAHUA NVR4208-8P-AI/ANZ is specified as an 8-channel network video recorder in the WizSense range. Incoming bandwidth is 256 Mbps. It has 2 SATA bays. Each bay accepts a drive up to 20 TB. A drive is not supplied with the recorder.
8 PoE ports supply power and video to cameras over one cable each. Decoding: AI disabled: 2-channel 16 MP@30 fps; 2-channel 12 MP@30 fps; 4-channel 8 MP@30 fps; 4-chan. Dahua lists both recorder-side AI and camera-side AI on this model. See the specification table for the channel counts. Live view works on HDMI or VGA, and remotely in DMSS.
Key Features
- 8 IP camera channels
- 8 PoE ports
- 2 SATA bays. Drives sold separately, up to 20 TB a bay
- Decoding: AI disabled: 2-channel 16 MP@30 fps; 2-channel 12 MP@30 fps; 4-channel 8 MP@30 fps; 4-chan
Key Features & Technical Specifications
| Feature | Specification |
|---|---|
| Brand | DAHUA |
| Model | NVR4208-8P-AI/ANZ |
| Product Type | 8CH 1U 8PoE 2HDDs WizSense Network Video Recorder |
| IP Channels | 8 channels |
| Network Bandwidth | AI disabled: 256 Mbps incoming, 256 Mbps recording and 256 Mbps outgoing AI enabled: 180 Mbps incoming, 180 Mbps recording and 180 Mbps outgoing |
| Decoding Capability | AI disabled: 2-channel 16 MP@30 fps; 2-channel 12 MP@30 fps; 4-channel 8 MP@30 fps; 4-channel 6 MP@30 fps; 6-channel 5 MP@30 fps; 8-channel 4 MP@30 fps AI enabled: 1-channel 16 MP@30 fps; 2-channel 12 MP@30 fps; 3-channel 8 MP@30 fps; 3-channel 6 MP@30 fps; 4-channel 5 MP@30 fps; 6-channel 4 MP@30 fps; 8-channel 1080p@30 fps |
| Recording Resolution | 16 MP;12 MP;8 MP;6 MP;5 MP;4 MP;3 MP;1080p;720p;960p;D1;CIF |
| PoE | 8 ports, 10/100 Mbps, IEEE 802.3 af/at |
| Hard Disk Bays | 2 SATA ports, up to 20 TB.The maximum HDD capacity varies with environment temperature. |
| Video Output | 1 HDMI, 1 VGA HDMI: 3840 × 2160, 1920 × 1080, 1280 × 1024, 1280 × 720 VGA: 1920 × 1080, 1280 × 1024, 1280 × 720 *Simultaneous/heterogeneous video sources output for VGA and HDMI is configurable. |
| AI by Recorder | Face detection; face recognition; perimeter protection; and SMD |
| AI by Camera | Face detection; face recognition; perimeter protection; SMD; ANPR; people counting; stereo analysis; heat map |
| Power Supply | 100–240 VAC, 47-63 Hz |
| Dimensions | 375 mm × 329.3 mm × 53.0 mm (14.76" × 12.96" × 2.09") (W × D × H) |
| Hard Drive | Not included. HDDs are sold separately. |
Downloads
Hard drives are not included. HDDs are sold separately: add a WD Purple or Seagate SkyHawk surveillance drive sized for your retention period.
Virtus Electronics supplies the equipment only. Installation, configuration and testing are not done by Virtus. We can refer the project to a licensed security installer in our partner network. Every referred partner holds a security licence.
