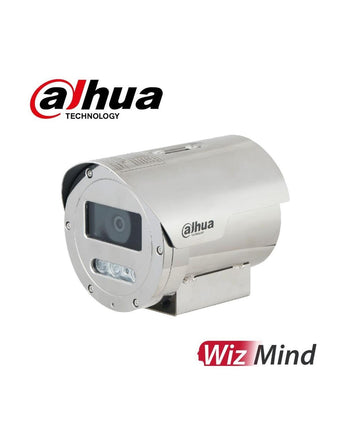

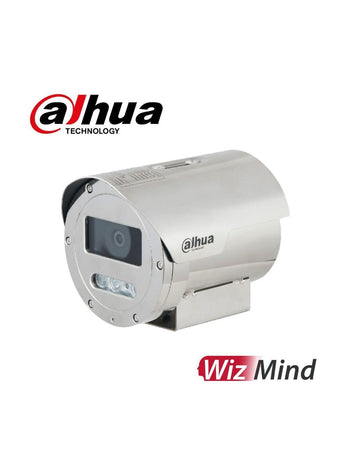

DAHUA 4MP Explosion Proof Network Camera 2.8-12mm Motorised Lens WizMind
DAHUA 4MP Explosion Proof Network Camera 2.8-12mm Motorised Lens WizMind – view 2
DAHUA
DAHUA ECA3A1404-HNR-XB 4MP WizMind 2.7mm-13.5mm motorised 50m IR IP68 Bullet Network Camera
This price is GST-exclusive
Couldn't load pickup availability
Know more about this product
Overview
DAHUA ECA3A1404-HNR-XB is specified at 4MP as a WizMind bullet IP camera. Imaging uses a 1/2.8" CMOS. The lens is 2.7 mm–13.5 mm, motorised vari-focal. Illumination: IR up to 50 m.
Perimeter rules on this model cover intrusion, tripwire, loitering, and Dahua states the rules sort people and vehicles. Smart Motion Detection is SMD 4.0. Also rated for WDR 120 dB, IP68, PoE or 12 VDC, microSD up to 512 GB. Operating range: –30 °C to +60 °C (–22 °F to +140 °F).
Key Features
- 4MP max resolution (2688 (H) × 1520 (V))
- WizMind
- Motorised vari-focal 2.7 mm–13.5 mm
- IR 50 m
- WDR 120 dB
- SMD 4.0
- microSD slot, up to 512 GB
- IP68 PoE
Key Features & Technical Specifications
| Feature | Specification |
|---|---|
| Brand | DAHUA |
| Model | ECA3A1404-HNR-XB |
| Camera Type | 4MP Explosion Proof IR Bullet WizMind Network Camera |
| Image Sensor | 1/2.8" CMOS |
| Max. Resolution | 2688 (H) × 1520 (V) |
| Min. Illumination | 0.005 lux@F1.5 (Color, 30 IRE) 0.0005 lux@F1.5 (B/W, 30 IRE) 0 lux (Illuminator on) |
| Lens Type | Motorized vari-focal |
| Focal Length | 2.7 mm–13.5 mm |
| Max. Aperture | F1.5 |
| Field of View | H: 99.4°–29°; V: 52.7°–16°; D: 118.5°–34° |
| Illumination Distance | Up to 50 m (164.04 ft) (IR) |
| Illuminators | 3 (IR light) |
| Wide Dynamic Range | 120 dB |
| Perimeter Protection | Intrusion, tripwire, fast moving (the three functions support the classification and accurate detection of vehicle and human); loitering detection, people gathering, and parking detection |
| Smart Motion Detection | SMD 4.0 |
| Video Compression | H.265; H.264; H.264H; H.264B; MJPEG (Only supported by the sub stream) |
| On-board Storage | FTP; SFTP; Micro SD card (support max. 512 GB); NAS |
| Network Port | RJ-45 (10/100 Base-T) |
| Power | 12 VDC/PoE |
| Ingress / Impact Protection | IP68; TVS 2000V lightning proof; surge protection; voltage transient protection |
| Operating Temperature | –30 °C to +60 °C (–22 °F to +140 °F) |
| Dimensions | 215 mm x 149 mm x 151 mm (8.46" x 5.87" x 5.94") (L x W x H) |
| Net Weight | 5 kg (11.02 lb) |
| Built-in Microphone | No |
Downloads
Recorder sold separately. Hard drives are not included with cameras. Add a WD Purple or Seagate SkyHawk surveillance drive to your NVR.
Virtus Electronics supplies the equipment only. Installation, configuration and testing are not done by Virtus. We can refer the project to a licensed security installer in our partner network. Every referred partner holds a security licence.
