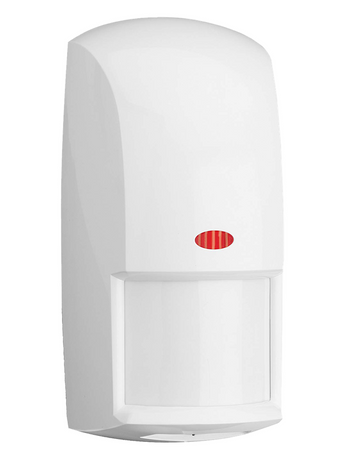

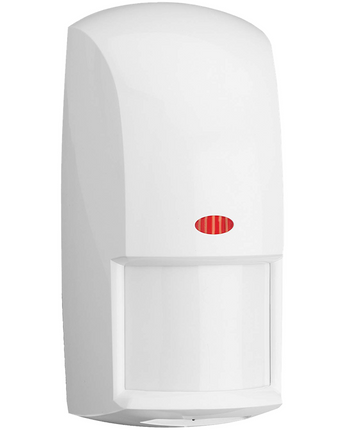

BOSCH BOSOD850-F1 Classic Series Hardwired PIR Tritech Mw PIR with Fresnel Optics Wall Mount IP54
BOSCH
BOSCH Classic Series Hardwired PIR Tritech Mw PIR with Fresnel Optics Wall Mount IP54 15x15m Detection BOSOD850-F1
/
Shipping calculated at checkout.
This price is GST-exclusive
Couldn't load pickup availability
Payment
Know more about this product
Overview
The Bosch Classic Series Hardwired PIR Tritech detector combines passive infrared and microwave technologies to deliver reliable intrusion detection for residential and commercial environments. Featuring Fresnel optics, the unit provides a 15x15 metre detection area with a dual-element sensor design that minimises false alarms caused by environmental factors. The device operates on 10-15VDC and includes both a normally closed contact and a single-pole double-throw relay output for flexible integration with alarm control panels. Encased in a durable white plastic housing with an IP54 rating, this wall-mount sensor is suitable for indoor installation where protection against dust and water splashes is required. The unit is designed for mounting heights between 2.1 and 2.7 metres, ensuring optimal coverage for standard room dimensions.Key Features & Technical Specifications
| Feature | Specification |
|---|---|
| Series | Classic Series |
| Technology | PIR Tritech (Microwave + PIR) |
| Detection Area | 15m x 15m |
| Mounting Type | Wall Mount |
| Mounting Height | 2.1m to 2.7m |
| Optics | Fresnel Optics |
| Sensor Type | Dual Element |
| Outputs | 1 x N/C Contact, 1 x SPDT Relay |
| Power Supply | 10-15VDC |
| Ingress Protection | IP54 |
| Material | Plastic |
| Colour | White |
