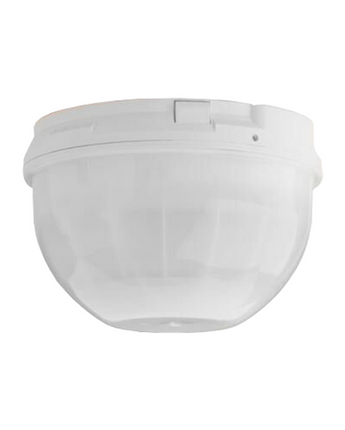

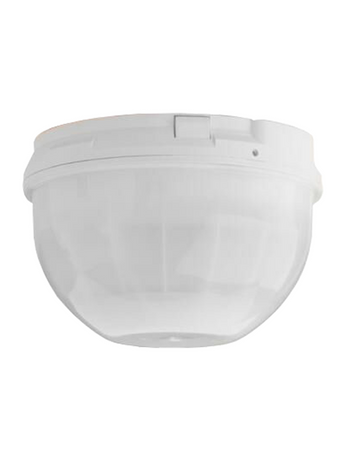

BOSCH BOSDS9360 Classic Series Hardwired 360° PIR Tritech (Mw+PIR) with Mirror Lens White 360°X 18m
BOSCH
BOSCH Classic Series Hardwired 360° PIR Tritech (Mw+PIR) with Mirror Lens White 360°X 18m Detection Area 1 X Spdt Output Plastic Ceiling Mount 2.4~5.5m Mount Height 6-15VDC BOSDS9360
/
Shipping calculated at checkout.
This price is GST-exclusive
Couldn't load pickup availability
Payment
Know more about this product
Overview
The BOSCH DS9360 is a hardwired 360-degree passive infrared (PIR) motion detector designed for ceiling installation in commercial and residential security applications. This tritech sensor combines passive infrared detection with microwave technology to ensure high accuracy and reduced false alarms. The unit features a mirror lens optical system that provides a detection range of 18 metres across a full 360-degree coverage area. Constructed from durable white plastic, the detector is rated for a mounting height between 2.4 and 5.5 metres. It operates on a 6 to 15VDC power supply and includes one single-pole double-throw (SPDT) relay output for alarm system integration. The device is engineered to detect human-sized movement while filtering out minor environmental disturbances.Key Features & Technical Specifications
| Feature | Specification |
|---|---|
| Sensor Type | PIR Tritech (Passive Infrared + Microwave) |
| Detection Range | 360° x 18m |
| Mounting Style | Ceiling Mount |
| Mounting Height | 2.4m to 5.5m |
| Power Supply | 6V to 15VDC |
| Output Type | 1 x SPDT Relay |
| Optical System | Mirror Lens |
| Colour | White |
| Housing Material | Plastic |
| Series | Classic Series |
