BOSCH BOS-NDM-7703-A 20MP Outdoor Multi Imager Dome 7000i Camera 4x5MP HDR IP66 3.7-7.7mm

BOSCH BOS-NDM-7703-A 20MP Outdoor Multi Imager Dome 7000i Camera 4x5MP HDR IP66 3.7-7.7mm – view 2

14-Day Returns Policy. No Hassle.

Australian Warranty and Tech Support

Official Online Reseller with real support from brands

BOSCH

BOSCH 20MP Outdoor Multi Imager Dome 7000i Camera 4x5MP HDR IP66 3.7-7.7mm BOS-NDM-7703-A

Name: BOSCH 20MP Outdoor Multi Imager Dome 7000i Camera 4x5MP HDR IP66 3.7-7.7mm BOS-NDM-7703-A
Brand: BOSCH
SKU: BOSCH-NDM-7703-A
Price: 3850.0 AUD
Availability: InStock

$3,850.00 AUD

Shipping calculated at checkout.

This price is GST-exclusive

Product variants

Quantity

Payment

Know more about this product

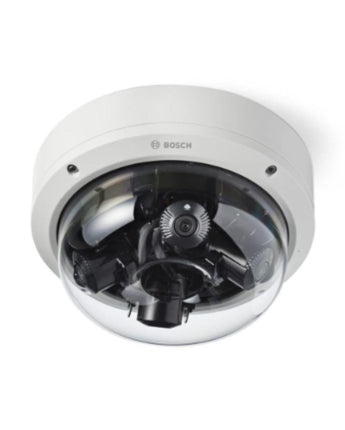

BOSCH 20MP Outdoor Multi Imager Dome 7000i Camera 4x5MP HDR IP66 3.7-7.7mm BOS-NDM-7703-A. This high-performance surveillance solution integrates four 5MP sensors into a single dome unit, delivering a combined 20MP resolution for comprehensive coverage. The motorised varifocal lens (3.7–7.7mm) enables precise framing of critical areas with remote adjustability. High Dynamic Range (HDR) technology ensures visibility in challenging lighting, while the IP66 rating guarantees durability against rain and dust. Intelligent Video Analytics (IVA) supports perimeter protection and object detection to reduce false alarms. The unit features a robust polycarbonate housing with UV-resistant coating and supports PoE for simplified installation.

Key Features & Technical Specifications

Feature	Specification
Total Resolution	20MP (4x 5MP)
Sensor Type	4x 1/2.7-inch CMOS
Lens Type	Motorised Varifocal
Focal Length	3.7 - 7.7mm
Aperture	F1.9
Viewing Angle	85.8° - 42.4° (H)
Dynamic Range	120 dB WDR
Ingress Protection	IP66
Video Compression	H.265, H.264, MJPEG
Power Supply	PoE+ (802.3at) / 24 VAC
Audio	Two-way (Mic + Line Out)
Operating Temperature	-40°C to +60°C
Dimensions	220 x 151 mm
Weight	2.33 kg
Mounting	Ceiling / Wall / Pole

How to use this product - from Virtus experts

These guides are created by our experts with years of real-world security surveillance experience. Get a free project quote tailored to your needs — contact our team at Virtus Electronics today.

Ideal Use Cases

Residential driveway and street approach: The BOSCH BOS-NDM-7703-A provides a fixed outdoor view with human and vehicle classification, which suits cars and people at the kerb better than general motion alone.

Eave and soffit mounting on typical Australian homes and small shops: The turret/dome body mounts under brick, weatherboard, or render eaves. Set pan/tilt after the base is fixed so you do not remount the housing.

Shopfront and mixed-light entries: Fixed outdoor coverage helps where sun meets canopy or glazed doors on customer-facing fronts.

Exposed outdoor walls and coastal humidity: OEM weather rating on this listing is Outdoor IP66. Seal the cable gland at install; do not claim performance beyond the published rating.

Side gates, car-park aisles, and small-business yards: A fixed view is useful where staff, vehicles, and foot traffic need clearer event filtering than basic motion.

Buyer Tips

Match the exact SKU before you order. Confirm BOS-NDM-7703-A, colour, and lens option against the job. Sibling SKUs can add mic, strobe, or different FOV.
Enable the smart events you paid for. If the camera supports human/vehicle filtering, turn those events on in the camera or NVR — general motion alone wastes the feature.
Give the lens a clean view. Heavy foliage, strong glass reflections, or objects too close to the lens increase false or missed events.
Plan cable sealing for outdoor installs. Seal glands and keep the published weather rating intact on eave and wall mounts.

FAQs

1. What model is this camera?

This listing is the BOSCH BOS-NDM-7703-A. Match the exact model/SKU on the datasheet before you order siblings with different lenses or deterrence options.

2. What does the AI / smart detection do?

Basic motion focuses alerts on people and vehicles when enabled on the camera or NVR, rather than foliage and background motion alone.

3. Is it suitable for outdoor eave and wall mounts in Australia?

Yes for outdoor-rated housings. Published weather rating: Outdoor IP66. Confirm aim, height, and cable sealing on site.

4. How is it powered?

Use the power method stated on this product page / datasheet (typically 12 VDC and/or PoE where listed). Check NVR/switch PoE budget before install.
