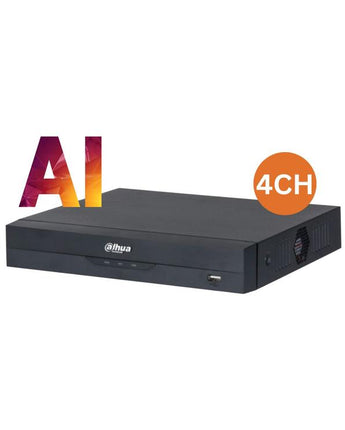

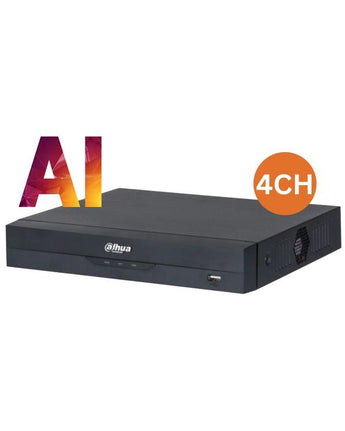

DAHUA 4-Channel WizSense AI Network Video Recorder DHI-NVR4104HS-P-AI/ANZ

The Dahua DHI-NVR4104HS-P-AI/ANZ is a compact 4-channel NVR from the WizSense series, designed for small to medium-sized businesses. It delivers AI-powered surveillance with built-in AI analytics including face detection and recognition, perimeter protection, and Smart Motion Detection Plus (SMD Plus) which filters out non-human/vehicle triggers. The unit features 1U unit features 4 PoE ports (802.3af/at, up to 25.5W per port) for direct camera power and data, and supports up to 16MP resolution recording. It integrates ANPR (up to 20,000 plates), heat map visualisation, and Quick Pick target search. The NVR includes 1 SATA port (up to 16TB), 1-channel RCA audio input/output, and 80 Mbps bandwidth. ONVIF compliant for third-party camera compatibility. Ideal for retail, offices, warehouses, parking lots, and residential complexes.

Channels	4 Channels (PoE)
Channels	4 Channels (PoE)
Recording Resolution	Up to 16MP (16MP, 12MP, 8MP, 6MP, 1080p, 720p, 720p, D1)
Decoding Capability	AI disabled: 4× 4× 8MP @ 30 fps; AI enabled× 4× 5MP @ 30 fps
AI Features	Face detection, face recognition, SMD Plus, Perimeter Protection, ANPR, People Counting, Heat Map, Stereo Analysis (with compatible cameras
Audio	1-channel RCA input/output
Storage	1 SATA port (up to 16 TB)
Power Supply	53 VDC, PoE (max 25.5W per port)
Network Bandwidth	80 Mbps incoming, 80 Mbps recording, 80 Mbps outgoing
Dimensions (W × D × H)	260 mm × 232.7 mm × 47.6 mm (1U)
Net Weight	0.86 kg
Weather Rating	Indoor use only
