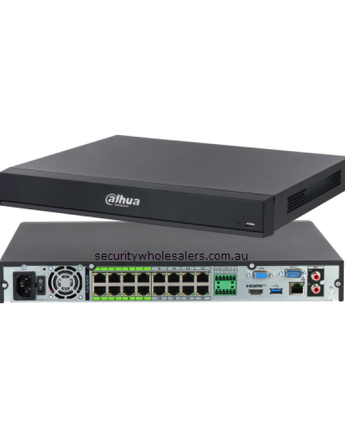

DAHUA NVR5216-16HP-AI/ANZ-PRO 16 Channel 16 PoE WizMind Network Video Recorder
Know more about this product
Overview
The Dahua NVR5216-16HP-AI/ANZ-PRO is a high-performance 16-channel WizMind network video recorder engineered for demanding commercial and industrial surveillance installations. Featuring 16 integrated Power over Ethernet ports with a robust 200W total power budget, it delivers seamless connectivity and ample power for active-deterrence, PTZ, and infrared IP cameras requiring high wattage. The recorder supports ultra-high-definition recording up to 32MP resolution, alongside 8K HDMI local video output and an impressive incoming bandwidth of up to 512Mbps when recorder-side AI is disabled.
Powered by advanced Xinghan Large-Scale AI Models, this network video recorder provides intelligent analytics including AcuPick and WizSeek natural-language target search, perimeter protection, face analysis, and video metadata extraction. These capabilities allow security operators to quickly search footage for specific persons or vehicles across busy facilities, significantly cutting down investigation times compared to traditional timeline reviews.
Built for reliable commercial integration, the unit features two SATA drive bays accommodating up to 20TB per disk for customizable recording retention. Dual video outputs with independent source display, ePoE on ports 1 through 8, integrated alarm inputs and outputs, and support for N+M failover clustering make it an adaptable central hub for comprehensive enterprise security management.
Key Features & Technical Specifications
| Feature | Specification |
|---|---|
| Brand | Dahua |
| Model | NVR5216-16HP-AI/ANZ-PRO |
| Recorder Type | 16-Channel 16-PoE 2-HDD WizMind Network Video Recorder |
| IP Camera Channels | 16 Channels |
| PoE Ports | 16 × 10/100 Mbps IEEE 802.3af/at (Ports 1–8 support ePoE) |
| PoE Power Budget | 200 W total (up to 25.5 W on a single port) |
| Supported Camera Resolution | Up to 32 MP |
| Network Bandwidth | AI Disabled: 512 Mbps incoming, 512 Mbps recording, 384 Mbps outgoing; AI Enabled: 200 Mbps incoming/recording/outgoing |
| Decoding Capacity | AI Disabled: 16 × 5 MP @ 30 fps; AI Enabled: 16 × 1080p @ 30 fps |
| AI Platform | WizMind (Xinghan Large-Scale AI Models) |
| AcuPick | 8 channels (Xinghan enabled) / 16 channels (Xinghan disabled); full channel support via compatible cameras |
| WizSeek | Supported (natural-language target search) |
| Perimeter Protection | Up to 16 channels by recorder (10 IVS rules per channel) |
| Face Analysis | Up to 8 channels (Xinghan enabled) / 16 channels (Xinghan disabled); up to 200,000 face images |
| SMD Plus | Up to 16 channels by recorder (when Xinghan models are disabled) |
| Video Outputs | 1 × HDMI (up to 7680 × 4320 / 8K), 1 × VGA (up to 1920 × 1080) with independent source support |
| Storage Bays | 2 × SATA III ports, up to 20 TB per HDD (HDD not included) |
| Audio & Alarm Interfaces | 1 × RCA Audio In, 1 × RCA Audio Out, 4 × Alarm In, 2 × Alarm Out |
Technical Specifications
| Specification | Details |
|---|---|
| 16-channel 16-PoE NVR, 200W total PoE budget, up to 32MP camera resolution, 512Mbps network bandwidth, dual HDMI/VGA outputs, 2 SATA III bays (up to 20TB per HDD), AI platform WizMind, video compression H.265+, H.264+, MJPEG. | |
