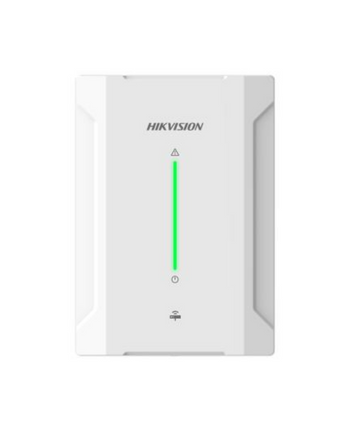

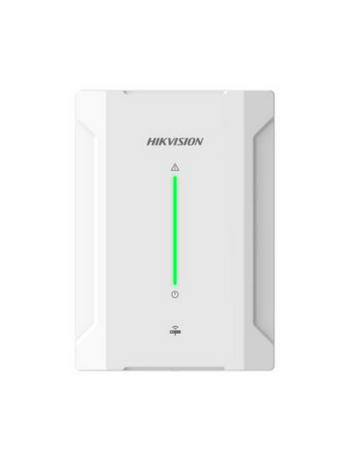

HIKVISION DS-PM1-RT-HWB Hybrid Pro Tri-X Wireless Receiver for Hardwired Alarm Panel
Know more about this product
Description
Expand your HIKVISION AX Hybrid Pro V1 control panel with the DS-PM1-RT-HWB 433MHz Tri-X Wireless Receiver. This device enables seamless integration of up to 32 wireless detectors, 8 indoor sounders, and 4 outdoor sounders, significantly increasing system flexibility. Featuring a robust transmission range of up to 1300m in open areas, it ensures reliable communication across large residential villas, retail shops, and small offices. The unit utilises 128-bit AES encryption and frequency hopping for advanced wireless security. Installation is streamlined via the Speed-X bus interface, connecting directly to the control panel for stable data transfer. Clear LED indicators provide immediate visual diagnostics for power status and alarm faults. Powered by a 9-28VDC supply, this receiver offers a versatile solution for upgrading hardwired systems to support wireless devices.
| Bus Interface | 1 x Speed-X |
| Power Supply | 9–28 VDC, 1A |
| Power Consumption | Max: 100 mA @ 12VDC; Quiescent: 40 mA @ 12VDC |
| RF Frequency | 433 MHz |
| Wireless Security | Frequency hopping + 128-bit AES encryption |
| Transmission Range | Up to 1300m (open area) |
| Alarm Input Capacity | Up to 32 wireless detectors |
| Sounder Support | Up to 8 indoor sounders, 4 outdoor sounders |
| Dimensions (W × H × D) | 110 × 155 × 32 mm |
| Weight | 0.233 kg |
| Material | Plastic |
| Operating Temperature | -10 °C to +40 °C |
| Operating Humidity | 10% to 90% (non-condensing) |
