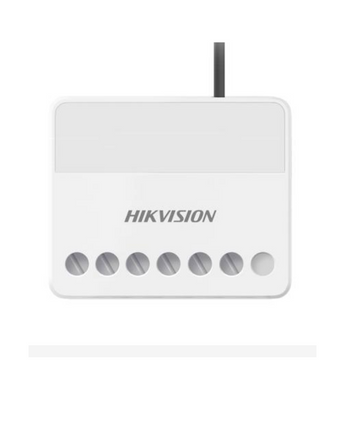

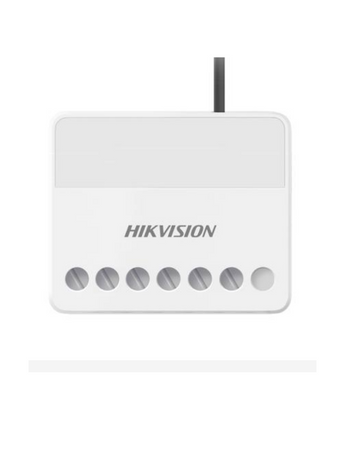

HIKVISION DS-PM1-O1L-WB AX Pro or Hybrid Pro Tri-X Relay Module 433MHz Wireless
Know more about this product
Description
The HIKVISION DS-PM1-O1L-WB is a compact wireless relay module designed to control low-voltage electrical power supply devices within AX Pro or Hybrid Pro security systems. This device supports a 7–24 VDC source and allows circuits to be opened or closed manually via the mobile app, keypad, or keyfob. Automation scenarios can be configured by linking the relay to specific system events. The unit features secure two-way communication with AES-128 encryption and includes an alarm input for tamper detection. A visible LED display indicates the device status and the relay on/off state. The small form factor allows for discreet installation in hiding places. It is compatible with the Tri-X technology for extended wireless range and includes Normally Open (NO) and Normally Closed (NC) output configurations.
| Model Number | DS-PM1-O1L-WB |
| Wireless Frequency | 433 MHz |
| Encryption | AES-128 |
| Power Supply | 7–24 VDC |
| Relay Type | Tri-X Relay Module |
| Contact Configuration | NO, NC |
| Tamper Protection | Tamper Alarm Input |
| Communication | Two-way Wireless |
| Indicators | LED Status Display |
| Mounting | Wall Mount / Concealed |
| System Compatibility | AX Pro, Hybrid Pro |
| Warranty | 3 Years |
