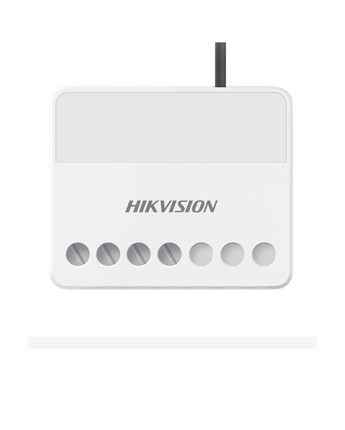

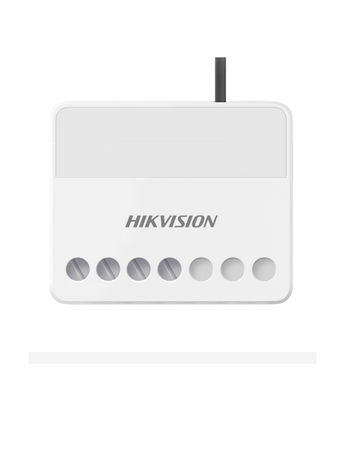

HIKVISION DS-PM1-O1H-WB AX Pro Series Wall Switch 433MHz Wireless Relay
Know more about this product
Description
The HIKVISION DS-PM1-O1H-WB is a compact smart wall switch designed for the AX Pro alarm series, enabling remote and automated control of electrical power supplies. Operating on 433 MHz wireless technology with AES-128 encryption, this device ensures secure, reliable two-way communication over distances up to 800m. Users can manually toggle connected circuits or manage them remotely via the Hik-Connect app, keypad, or keyfob. The integrated LED display provides real-time visual feedback on device status and relay activity. Its compact casing fits discreetly into standard 86mm wall boxes or allows for surface mounting. Ideal for automating lighting, HVAC systems, or other electrical loads in residential and commercial settings, the switch supports scenario settings triggered by alarms, faults, or schedules. Compatible with AC 100–240V power sources, it offers a robust 13A NO/NC relay output for high-load device control.
| Model | DS-PM1-O1H-WB |
| Power Supply | AC 100–240V, 50/60Hz |
| Relay Output | 1 x NO/NC (Max 13A) |
| Wireless Frequency | 433 MHz |
| Wireless Range | Up to 800m (Line of Sight) |
| Encryption | AES-128 |
| LED Indicators | Register/Signal (Green/Red), Power (Green), Relay Status (Blue) |
| Dimensions | 38 x 25 x 18 mm |
| Weight | 31.5 g |
| Operating Temperature | -10°C to +55°C |
| Mounting Type | Wall mount or inside 86mm box |
| Wireless Protocol | AX Pro Two-Way |
