HIKVISION DS-PM1-I1-WB AX Pro Single Input Transmitter Wireless Alarm Module
Know more about this product
Description

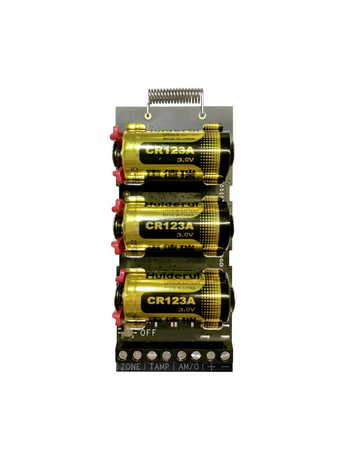

Integrate existing wired detectors into the AX PRO wireless alarm system with the HIKVISION DS-PM1-I1-WB Single Input Transmitter. This compact module converts standard wired sensors, such as outdoor PIRs, into wireless signals compatible with the AX PRO hub. Featuring 433 MHz two-way communication, the device ensures stable performance and real-time status feedback via LED indicators. Built-in tamper detection and an accelerometer immediately report device removal or movement, significantly enhancing security. The unit includes one tamper input and one programmable PGM output, offering flexibility for alarm triggering or zone monitoring. With a 3.3V output capability, it can power external wired detectors up to 10mA. Designed for discreet installation inside third-party detector housings, this transmitter supports app-based configuration for seamless setup.
| Model Number | DS-PM1-I1-WB |
| Product Series | AX Pro |
| RF Frequency | 433 MHz |
| Communication Type | Two-way wireless |
| Alarm Inputs | 1 Alarm, 1 Tamper |
| Alarm Outputs | 1 PGM, AM/Output |
| Voltage Output | 3.3V DC (up to 10mA) |
| Power Supply | 3 x CR123A Batteries |
| Battery Life | Up to 5 years (standby) |
| Dimensions (W x H x D) | 102 x 41 x 20 mm |
| Weight | 35 g (without battery), 90 g (with battery) |
| Operating Temperature | -10 °C to +55 °C |
| Operating Humidity | 10% to 90% |
| Transmission Distance | Up to 1300 m (open area) |
| RF Modulation | 2GFSK |
| Indicators | Alarm/Tamper (Red), Fault (Amber), Signal Strength (Green/Red) |
| Protection Features | Accelerometer, Tamper Switch |
