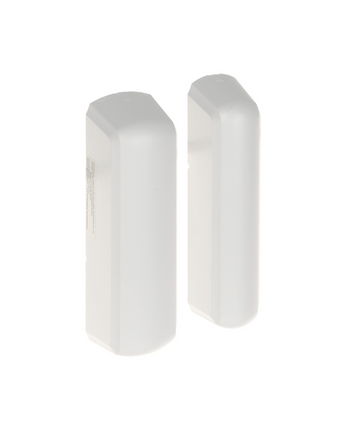

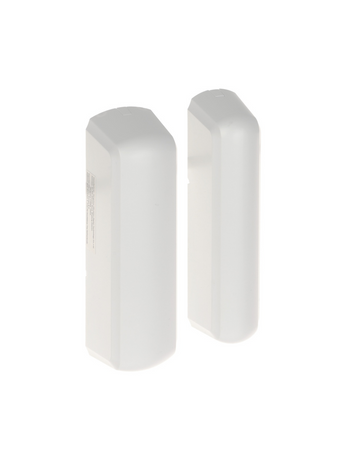

HIKVISION DS-PDMCX-E-WB AX Pro Wireless External Magnetic Contact IP66 Outdoor Sensor
Know more about this product
Description
The HIKVISION DS-PDMCX-E-WB provides robust perimeter protection for residential and commercial applications. Engineered with an IP66-rated housing, this wireless contact sensor withstands harsh weather conditions while maintaining reliable performance. The device utilises Tri-X wireless technology to offer frequency hopping and AES-128 encryption, ensuring secure transmission resistant to jamming attempts. Digital signal processing enhances detection accuracy, significantly reducing false alarms caused by environmental interference. Users benefit from remote configuration via the HIKVISION mobile app, supporting multiple enrollment methods including power-up, remote ID, and QR code scanning. A long-life CR123A battery supports up to five years of standby operation. Tamper protection on both the front and rear guards against physical sabotage, while built-in LED indicators assist with installation verification and alarm status.
| Model | DS-PDMCX-E-WB |
| Protection Rating | IP66 |
| Wireless Frequency | 433MHz (Tri-X) |
| Encryption | AES-128 |
| Detection Gap | Up to 76mm |
| Battery Type | 1 x CR123A |
| Battery Life | Up to 5 years standby |
| Operating Temperature | -20°C to 60°C |
| Sensor Dimensions | 40.5 x 146 x 40.9mm |
| Magnet Dimensions | 30.5 x 146 x 40.9mm |
| Weight | 0.247kg |
| Transmission Range | Up to 1km (Free Space) |
