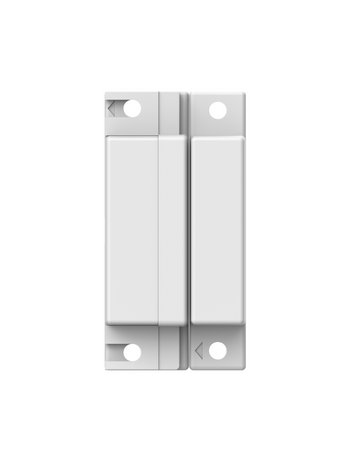

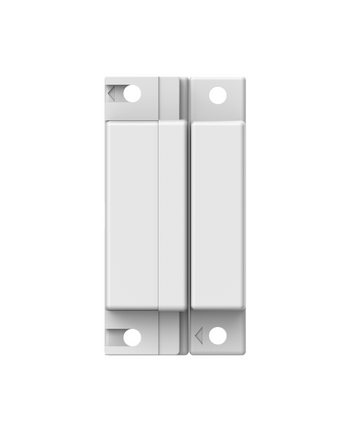

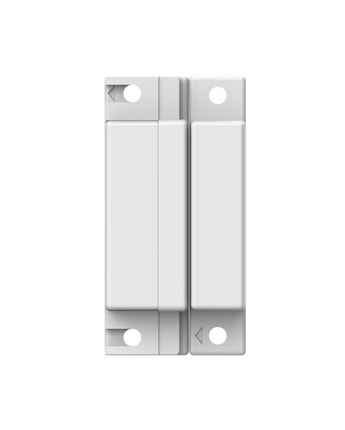

HIKVISION DS-PD1-MC-WS Surface Mounted Magnetic Contact Wired Sensor
Know more about this product
Description
The HIKVISION DS-PD1-MC-WS provides reliable intrusion detection for residential and commercial alarm systems. Constructed with flame-retardant ABS housing, this wired sensor ensures long-term durability for surface-mounted installations on wooden doors. The Normally Closed (NC) connection type integrates seamlessly with standard alarm control panels to trigger alerts upon door or window opening. A wide detection gap of up to 17mm allows for flexible alignment during setup, ensuring stable performance without constant false alarms. Its slim, compact profile maintains a discreet appearance while delivering robust security coverage for perimeter protection.
| Model Number | DS-PD1-MC-WS |
| Material | Flame Retardant ABS |
| Connection Type | Normally Closed (NC) |
| Detection Gap | Up to 17 mm |
| Supply Voltage | ≤100 VDC |
| Current Consumption | ≤500 mA |
| Operating Temperature | -10 °C to 55 °C |
| Storage Temperature | -20 °C to 60 °C |
| Operating Humidity | 10% to 90% |
| Dimensions | 63.5 x 12.5 x 15.7 mm |
| Installation Type | Surface Mount (Wood) |
| Cable Length | N/A (Wired by installer) |
