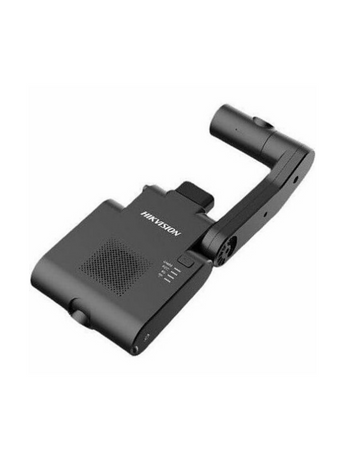

HIKVISION AE-DI2032-G40 In-Vehicle Dash Camera, 1080p, GPS, G-Sensor, Wi-Fi, Integrated Design
Know more about this product
Description
The HIKVISION AE-DI2032-G40 is an industrial-grade dashcam engineered for vehicle monitoring and fleet safety management. It captures high-definition video at up to 1080p resolution using a 1/2.7" Progressive Scan CMOS sensor, ensuring clear and detailed footage day or night. The device supports up to three video channels and one audio channel, allowing for comprehensive multi-angle coverage with optional external TVI cameras.
- Built-in GPS and G-sensor functionality records position, speed, and impact data directly onto the video for accurate event verification.
- Integrated 4G LTE and Wi-Fi modules enable real-time remote viewing, configuration, and file transfer via the mobile app.
- Advanced Driver Monitoring (DSM) detects driver fatigue, distraction, smoking, and phone use to promote safer driving habits.
- Driver Assistance (ADAS) features provide warnings for forward collisions, lane departures, and traffic sign violations.
- The unit offers dual TF card storage slots, each supporting up to 512 GB, with automatic overwrite for continuous recording.
- Its compact, rugged design is built for low power consumption and reliable performance in demanding industrial environments.
| Model | AE-DI2032-G40 |
| Type | Industry Dashcam |
| Image Sensor | 1/2.7" Progressive Scan CMOS |
| Resolution | Up to 1080p (1920 × 1080) |
| Lens | 2.1 mm fixed focal, F2.1 aperture, M12 mount |
| Field of View | Horizontal: 127°, Vertical: 73°, Diagonal: 137° |
| Video Compression | H.264 / H.265 |
| Audio Compression | G.711a, G.711u, AAC |
| Video Input | 3-channel video (1 built-in + 2 optional extensions) |
| Audio Input | 1-channel audio |
| Wi-Fi | 2.4 GHz, IEEE 802.11 b/g/n, supports Wi-Fi AP |
| Mobile Network | 4G LTE (varies by region, supports FDD/TDD-LTE, UMTS, GSM) |
| Positioning | GPS / GLONASS |
| Storage | Dual TF cards, up to 512 GB each (Class 10 or above) |
| G-Sensor | Built-in 3-axis G-sensor |
| Power Supply | DC 12 V / 24 V (via 8-pin BM male terminal) |
| Operating Temperature | -20°C to +70°C |
| Storage Temperature | -30°C to +80°C |
| Waterproof Rating | IP4X (install in protected location inside vehicle) |
| Dimensions | 108 mm × 62 mm × 35 mm |
