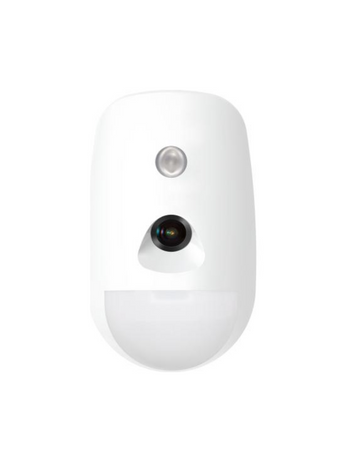

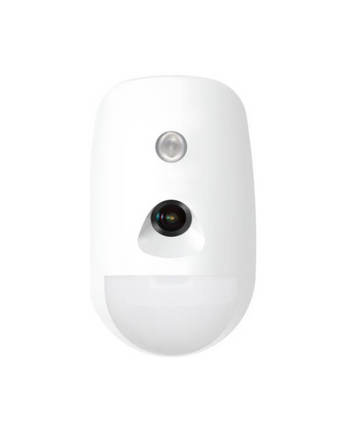

HIKVISION DS-PDPC12P-EG2 AX Pro Hardwired PIRCAM Detector 12m 30kg Pet Immune
Know more about this product
Description
The HIKVISION DS-PDPC12P-EG2 combines passive infrared motion detection with an integrated high-resolution camera to provide instant visual verification of intrusions. This hardwired detector delivers 1920x1080 resolution snapshots upon alarm triggers, allowing security operators to confirm threats without delay. With a detection range of 12 metres and 85.9-degree coverage, the unit features advanced SEC (Smart Environmental Control) algorithms to filter false alarms caused by environmental factors. The detector maintains immunity to pets weighing up to 30kg, ensuring reliability in homes with animals. Encrypted Speed-X bus communication secures data transmission over distances up to 1 kilometre, while the polarising IR lens ensures uniform night illumination for clear image capture in low-light conditions.
| Detection Method | Passive Infrared + Video Verification |
| Detection Range | 12m |
| Detection Angle | 85.9° |
| Detection Zones | 52 |
| Sensitivity | Auto / High / Pet |
| Pet Immunity | Up to 30kg |
| White Light Filter | 6500 lux |
| Temperature Compensation | Digital |
| Creep Zone Protection | Supported |
| Video Field of View | 109° (H), 60° (V) |
| Image Type | JPEG |
| Resolution | 1920 x 1080 / 1280 x 720 / 640 x 480 |
| Fill Light | Infrared, up to 12m |
| Day/Night Mode | Color / Black & White |
| Alarm Output | High Speed Bus |
| LED Indicators | Blue (Alarm), Orange (Fault) |
| Transmission | Speed-X Wired Bus, AES-128 Encryption |
| Bus Range | Up to 1km (free space) |
| Operating Temperature | -10 °C to 55 °C (14 °F to 131 °F) |
| Storage Temperature | -20 °C to 60 °C (-4 °F to 140 °F) |
| Operating Humidity | 10% – 90% |
| Dimensions (W × H × D) | 73 × 130.5 × 56.7 mm |
| Weight | 195 g |
| Mounting Height | 1.8 – 2.4m |
| Mounting Method | Wall (optional ceiling bracket) |
| Application | Indoor |
