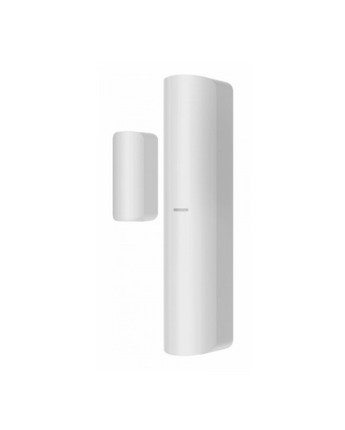

HIKVISION DS-PDMCK-EG2-WB AX Pro Wireless Magnet Shock Detector White
Know more about this product
Description
Secure doors and windows with the Hikvision DS-PDMCK-EG2-WB, a versatile wireless detector combining magnetic contact, shock, and tilt detection. This Tri-X technology device filters out background vibrations to prevent false alarms while ensuring reliable intrusion alerts. The compact, slim design fits discreetly on frames and glass panels. Fully configurable via the Hik-Connect app, it supports remote ID and QR code enrollment for quick installation. Advanced AES-128 encryption and frequency hopping protect against signal jamming. Front and rear tamper protection secures the unit against physical removal. Powered by a CR123A battery, it delivers up to three years of standby life. Two wired inputs allow for expansion with additional sensors. Ideal for homes, offices, and retail environments.| Detection Method | Opening Contact, Shock, Tilt |
| Detection Gap | 43mm Max |
| Sensitivity | Shock: High/Normal/Low; Tilt: up to 25° |
| Transmission Technology | Tri-X Wireless, Two-Way RF |
| Frequency | 433MHz with AES-128 Encryption |
| Range | Up to 1km (open space) |
| Enrolling Method | Power-up, Remote ID, QR Code |
| Battery Type | CR123A × 1 (3.0V) |
| Battery Life | Up to 3 years (standby) |
| Dimensions (Main) | 22.5 × 103 × 23.2mm |
| Dimensions (Magnet) | 13 × 34.4 × 11.4mm |
| Weight | 60g |
| Operating Temperature | -10 °C to 55 °C |
| Application Scenario | Indoor |
