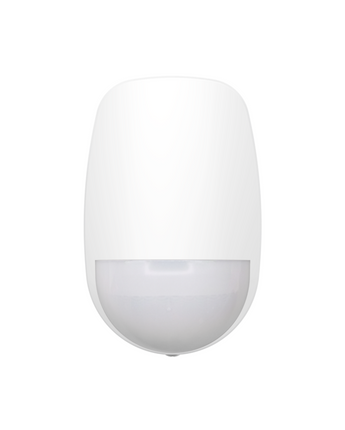

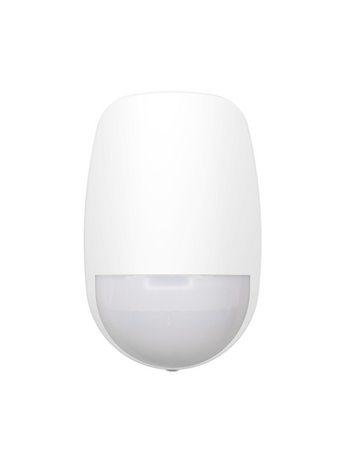

HIKVISION DS-PDD12P-EG2-WB AX Pro Wireless Dual-Tech PIR Detector Pet Immune White
Know more about this product
Description
The HIKVISION DS-PDD12P-EG2-WB delivers reliable indoor security through dual passive infrared and microwave detection technology. This fully supervised wireless unit features 3D optics with creep-zone protection to eliminate blind spots while maintaining accurate human motion recognition. Digital temperature compensation ensures consistent performance across varying environmental conditions. The 24GHz microwave sensor prevents false alarms caused by wall penetration. Pet immunity filters out animals up to 30kg to reduce unwanted alerts. Frequency hopping and AES-128 encryption provide secure communication over distances up to 1.2km in free space. The compact white housing mounts easily on walls or ceilings using optional brackets. Two CR123A batteries power the unit for up to five years of continuous operation. Remote configuration via the Hik-Connect App simplifies setup and management. This detector integrates seamlessly with AX Pro or Hybrid Pro alarm systems.
| Detection Method | Passive Infrared + Microwave |
| Detection Range | 12m |
| Detection Angle | 85.9° |
| Zones | 52 zones |
| Pet Immunity | Up to 30kg |
| Microwave Frequency | 24GHz (24.15–24.25GHz) |
| Wireless Transmission | Tri-X Wireless, AES-128 encryption |
| Wireless Range | Up to 1.2km (free space) |
| Battery Type | 2 x CR123A (3V) |
| Battery Life | Up to 5 years |
| Operating Temperature | -10 °C to 55 °C |
| Dimensions | 65.5mm x 103mm x 48.5mm |
| Weight | 141g |
| Mounting Type | Wall or Ceiling (brackets optional) |
| Colour | White |
