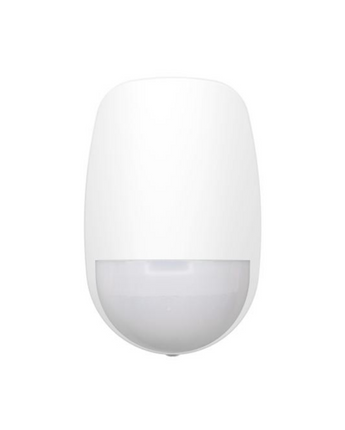

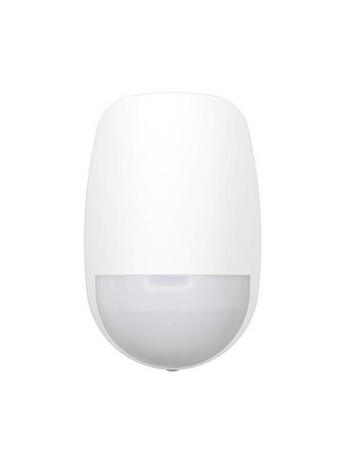

HIKVISION DS-PDD12P-EG2 AX Pro Wired Dual-Tech PIR Detector Pet Immune 12m
Know more about this product
Description
The HIKVISION DS-PDD12P-EG2 delivers reliable indoor intrusion detection using dual-technology fusion of passive infrared and 24GHz microwave sensing. This wired detector minimises false alarms through pet immunity up to 30kg and sealed optics that prevent insect interference. Digital temperature compensation maintains consistent performance across varying environments, while automatic sensitivity adjustment adapts to changing conditions. The unit features 52 detection zones including creep-zone protection for comprehensive coverage without blind angles. Installation is simplified by non-interfering technology that supports back-to-back mounting through walls, reducing setup time and cost. Wide voltage support between 9-16VDC includes polarity reverse connection protection for added safety.
| Detection Method | Passive Infrared + Microwave |
| Detection Range | 12m |
| Detection Angle | 85.9° |
| Detection Zones | 52 zones with creep-zone protection |
| Pet Immunity | Up to 30kg |
| Detectable Speed | 0.3-2m/s |
| White Light Immunity | 6,500 lux |
| Microwave Frequency | 24GHz (24.15-24.25GHz) |
| Alarm Output | Normally Closed |
| LED Indicator | Green (PIR), Orange (Microwave), Blue (Alarm) |
| Power Supply | 9-16 VDC (12V typical) |
| Mounting Type | Wall or Ceiling (brackets sold separately) |
| Operating Temperature | -10°C to +55°C |
| Storage Temperature | -20°C to +70°C |
| Warranty | 3 Years |
