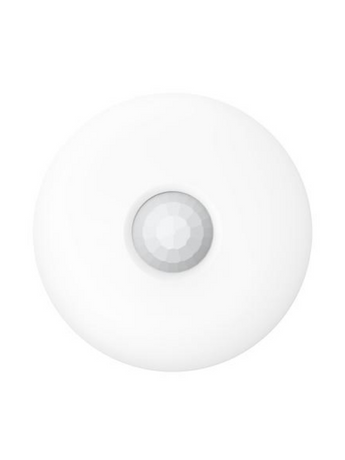

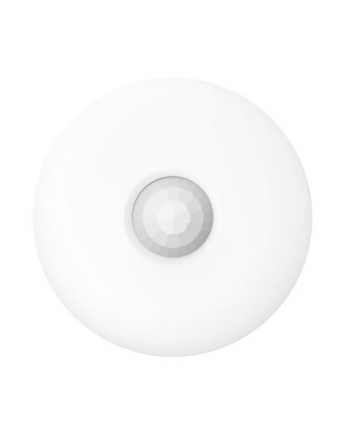

HIKVISION DS-PDCL12DT-EG2 AX Pro Hardwired 360 Degree Dual-Tech Ceiling Detector
Know more about this product
Description
The HIKVISION DS-PDCL12DT-EG2 is a high-performance wired dual-tech ceiling detector designed for superior detection accuracy in indoor environments. This unit combines a digital quad pyro sensor with 24GHz smart microwave technology to minimise false alarms while providing full 360-degree coverage. Advanced features include automatic sensitivity adjustment for consistent performance and digital temperature compensation to maintain reliability across varying climates. The 172 detection zones and creep zone protection ensure complete area monitoring, covering blind spots directly beneath the unit. Sealed optics prevent dust and insect interference, while the wide voltage support of 9-16 VDC ensures stable operation. Equipped with an on-board EoL resistor and front tamper protection, this detector is ideal for retail shops, offices, and hallways requiring robust security.
| Model | DS-PDCL12DT-EG2 |
| Detection Method | Passive Infrared + Microwave |
| Detection Range | 12 m |
| Detection Angle | 360 degrees |
| Detection Zones | 172 |
| Microwave Frequency | 24 GHz (24.15-24.25 GHz) |
| Detectable Speed | 0.3 - 2 m/s |
| Sensitivity | Auto, Low |
| White Light Filter | 6500 lux |
| Power Supply | 9 - 16 VDC (12 VDC typical) |
| Power Consumption | 100 mA Max |
| Operating Temperature | -10 °C to 55 °C |
| Mounting Height | 2.4 - 4 m |
| Mounting Method | Ceiling |
| Tamper Protection | Front |
| LED Indicator | Green (PIR), Red (Microwave), Blue (Alarm) |
| Digital Processing | Supported |
| Sealed Optics | Supported |
| Creep Zone Protection | Supported |
| Digital Temperature Compensation | Supported |
| Application | Indoor |
