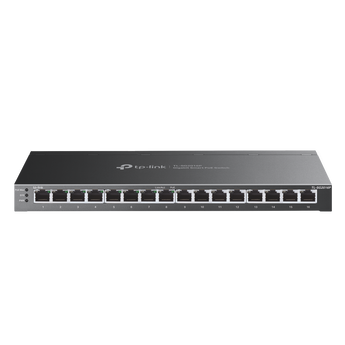

TP-LINK JetStream 16-Port Gigabit Smart Switch with 8-Port PoE+ TL-SG2016P

Description

The JetStream TL-SG2016P is a 16-port gigabit smart switch designed for small and medium business networks. It features eight 802.3at/af compliant PoE+ ports with a total power budget of 120 W, allowing you to power IP cameras, wireless access points, and IP phones directly through the Ethernet cable. The switch also provides eight additional non-PoE gigabit ports for connecting PCs, printers, and other wired devices. Integrated into the Omada SDN platform, it supports zero-touch provisioning, centralized cloud management, and intelligent monitoring via the Omada app. Advanced security features include IP-MAC-Port Binding, Access Control Lists (ACL), 802.1X authentication, and DoS defense. Quality of Service (QoS) and IGMP snooping optimize voice and video traffic for a lag-free experience. The fanless metal casing ensures silent operation and reliable performance in desktop or wall-mounted installations.

Standards and Protocols	IEEE 802.3i, 802.3ab, 802.3ad, 802.3af, 802.3at, 802.3x, 802.1d, 802.1s, 802.1w, 802.1q, 802.1p, 802.1x
Interfaces	16 x 10/100/1000 Mbps RJ45 ports (ports 1-8 support 802.3at/af PoE+), auto-negotiation, auto MDI/MDIX
Network Media	10BASE-T: UTP category 3, 4, 5 cable (max 100 m); 100BASE-TX/1000Base-T: UTP category 5, 5e or above cable (max 100 m)
Fan Quantity	Fanless
Power Supply	External power adapter (output: 53.5 VDC / 2.43 A)
PoE Ports (RJ45)	8 ports, 802.3af/at compliant, total power supply 120 W
Dimensions (W x D x H)	286 x 111.7 x 25.4 mm
Mounting	Desktop / wall-mounting
Maximum Power Consumption	146.5 W (110 V/60 Hz) with 120 W PD connected
Max Heat Dissipation	499.98 BTU/hr (110 V/60 Hz) with 120 W PD connected
Switching Capacity	16 Gbps
MAC Address Table	8K
Packet Buffer	4.1 Mbit
Jumbo Frame	9 KB
VLAN	Max 4K VLAN groups, 802.1Q tag VLAN, MAC VLAN (12 entries), protocol VLAN, GVRP, voice VLAN
Access Control List (ACL)	Up to 230 entries, time-based, MAC ACL, IP ACL, IPv6 ACL, combined ACL
Security	802.1X, IP-MAC-Port Binding, DHCP Snooping, ARP Inspection, DoS Defend, port security, storm control, port isolation, HTTPS, SSH
Quality of Service (QoS)	802.1p CoS/DSCP priority, 8 priority queues, SP/WRR scheduling, bandwidth control, storm control
L2 Features	Link aggregation (static/LACP, up to 8 groups), STP/RSTP/MSTP, loopback detection, port mirroring, LLDP, DLDP
L2 Multicast	511 IPv4/IPv6 shared groups, IGMP snooping v1/v2/v3, MLD snooping v1/v2, MVR
Management	Web GUI, CLI (telnet/SSH), SNMP v1/v2c/v3, RMON, Omada app, cloud-based controller, OC300/OC200, software controller
Certifications	CE, FCC, RoHS
Operating Temperature	0 to 40 °C
Storage Temperature	-40 to 70 °C
Operating Humidity	10 to 90% RH non-condensing
Storage Humidity	5 to 90% RH non-condensing
