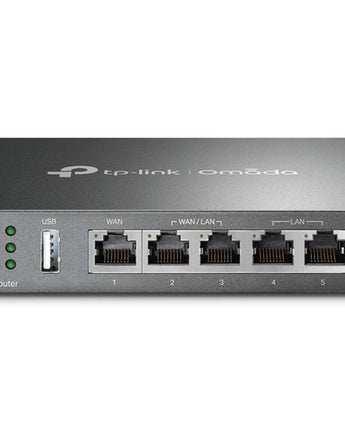

TP-LINK ER605 Omada Gigabit VPN Router ER605

Description

The TP-Link ER605 is a wired VPN router designed for small and medium businesses seeking reliable, high-speed network connectivity. It features five Gigabit Ethernet ports, with support for up to three WAN connections to ensure load balancing and link failover for uninterrupted internet access. The integrated USB 2.0 port allows connection of a 4G/3G modem as a backup WAN source. Advanced VPN capabilities include IPsec, PPTP, L2TP, and OpenVPN protocols for secure remote access. The router can be managed individually or centrally through the Omada SDN platform via a hardware or cloud-based controller, providing unified configuration, monitoring, and zero-touch provisioning. A fanless steel enclosure ensures silent operation and durability, while 4 kV surge protection adds reliability. The ER605 is ideal for branch offices, retail spaces, and home offices requiring a robust, secure gateway.

Standards and Protocols	IEEE 802.3, 802.3u, 802.3ab, 802.3x, 802.1q; TCP/IP, DHCP, ICMP, NAT, PPPoE, NTP, HTTP, HTTPS, DNS, IPSec, PPTP, L2TP, OpenVPN, SNMP
Interface	1 Fixed Gigabit WAN Port, 2 Fixed Gigabit LAN Ports, 2 Changeable Gigabit WAN/LAN Ports, 1 USB 2.0 Port
Network Media	10BASE-T: UTP cat 3/4/5 (100m); 100BASE-TX: UTP cat 5/5e (100m); 1000BASE-T: UTP cat 5/5e/6 (100m)
Power Supply	External 12V/1A DC Adapter
Max Power Consumption	7.94 W
Flash	128 MB NAND
DRAM	256 MB DDR
Dimensions (W x D x H)	158 x 101 x 25 mm
Enclosure	Steel
Mounting	Desktop / Wall-mount
Fan Quantity	Fanless
Protection	4 kV surge protection
LED Indicators	PWR, SYS, WAN (Link/Act), LAN (Link/Act), USB
Certification	CE, FCC, RoHS
Operating Temperature	0 to 40 °C
Storage Temperature	-40 to 70 °C
Operating Humidity	10 to 90% RH non-condensing
Storage Humidity	5 to 90% RH non-condensing
